Cadre : Overvolt 130mm travel integrated Bosch Supreme 5 alloy boost + New rear triangle (UDH Dropout + integrated sensor)
Fourche : SR Suntour XCR 34 Air LO-R 29” 15×110 130mm travel
Amortisseurs : Lapierre Shock Trunnion 185x50mm
Moteur / Batterie / Display : Bosch Performance CX Gen4 625Wh PowerTube Purion
Dérailleur Arrière : Shimano Deore, 11s
Pédalier : New Lapierre Overvolt ISIS 160mm (S/M) / 165mm (L/XL) + E13 steel ring 34T
Cassette : Shimano Deore 10-51T
Chaîne : KMC E11 Turbo 11s
Freins : Shimano M4100 4 (front) / 2 (rear) pistons
Discs : Shimano SMRT30 203mm (Froment) / RTEM300 with Magnet 180mm (S/M), 203mm (L/XL) (rear)
Manettes / Leviers : Shimano Deore 11s
Jeu de direction : FSA NO.55R/57E, Anodized black 1-1/8″-1.5″
Cintre : Lapierre alloy 6061DB, Width: 760mm, Rise: 15mm (S/M), 30mm (L/XL), Ø: 31.8mm
Poignées : Lapierre grips, S/M: small diameter, L/XL: large diameter
Potence : Lapierre CNC, 0°, Ø: 31.8mm, L: 45mm (S/M), 50mm (L/XL)
Tige de selle : Lapierre dropper by JD, Ø: 31.6mm, travel 100mm (S), 130mm (M), 150mm (L/XL) + Shimano lever
Selle : Selle Royal Vivo
Moyeu avant : Lapierre by Fastace DA210, boost 15×110, 32H Center Lock
Moyeu arrière : Lapierre by Fastace DA210, 4 sealed bearings, boost 12×148, 32H Center Lock
Roues complètes : Lapierre eAM+ 32H, rear: 35-584
Pneus : Maxxis, front: 27.5×2.6 Minion DHF, 60TPI, EXO, TR / rear: 27.5×2.6 Rekon 60TPI, EXO, TR
Pédales : VP VPE-527
Accessoires : Bosch Charger 4A / thru axle multitool lever / Tubeless flap + valves / New axle lock
Poids : 25.3 kg *

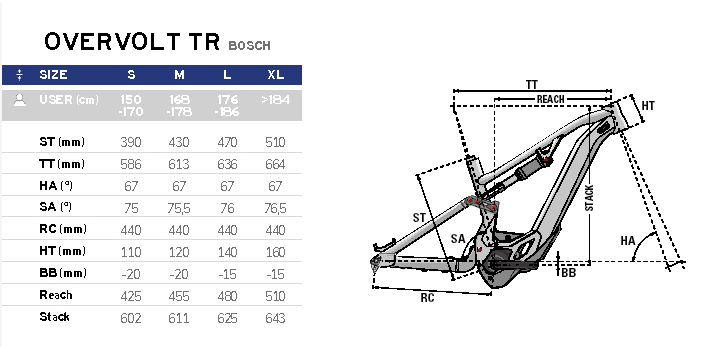

Taille : S, M, L, XL
