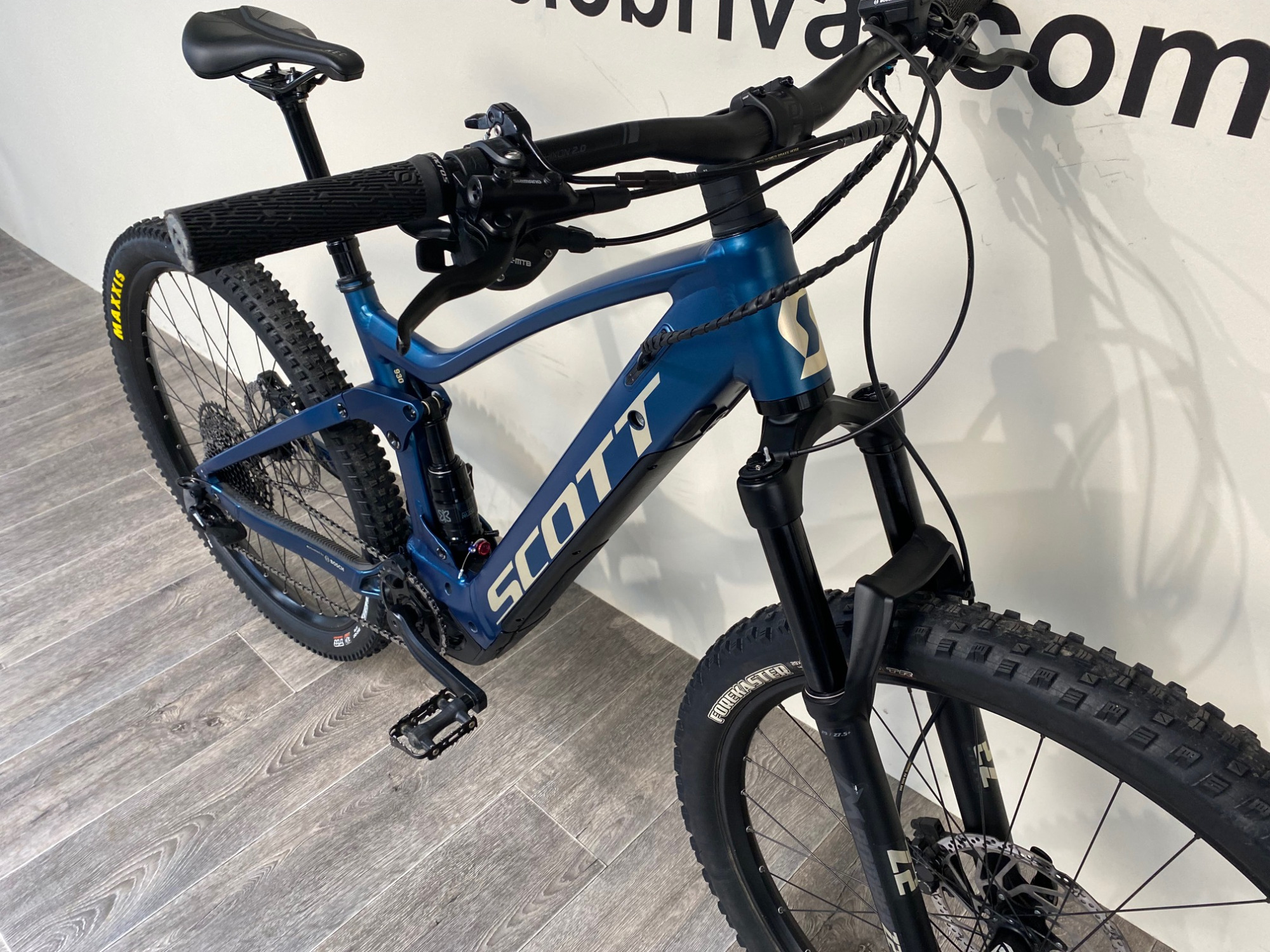

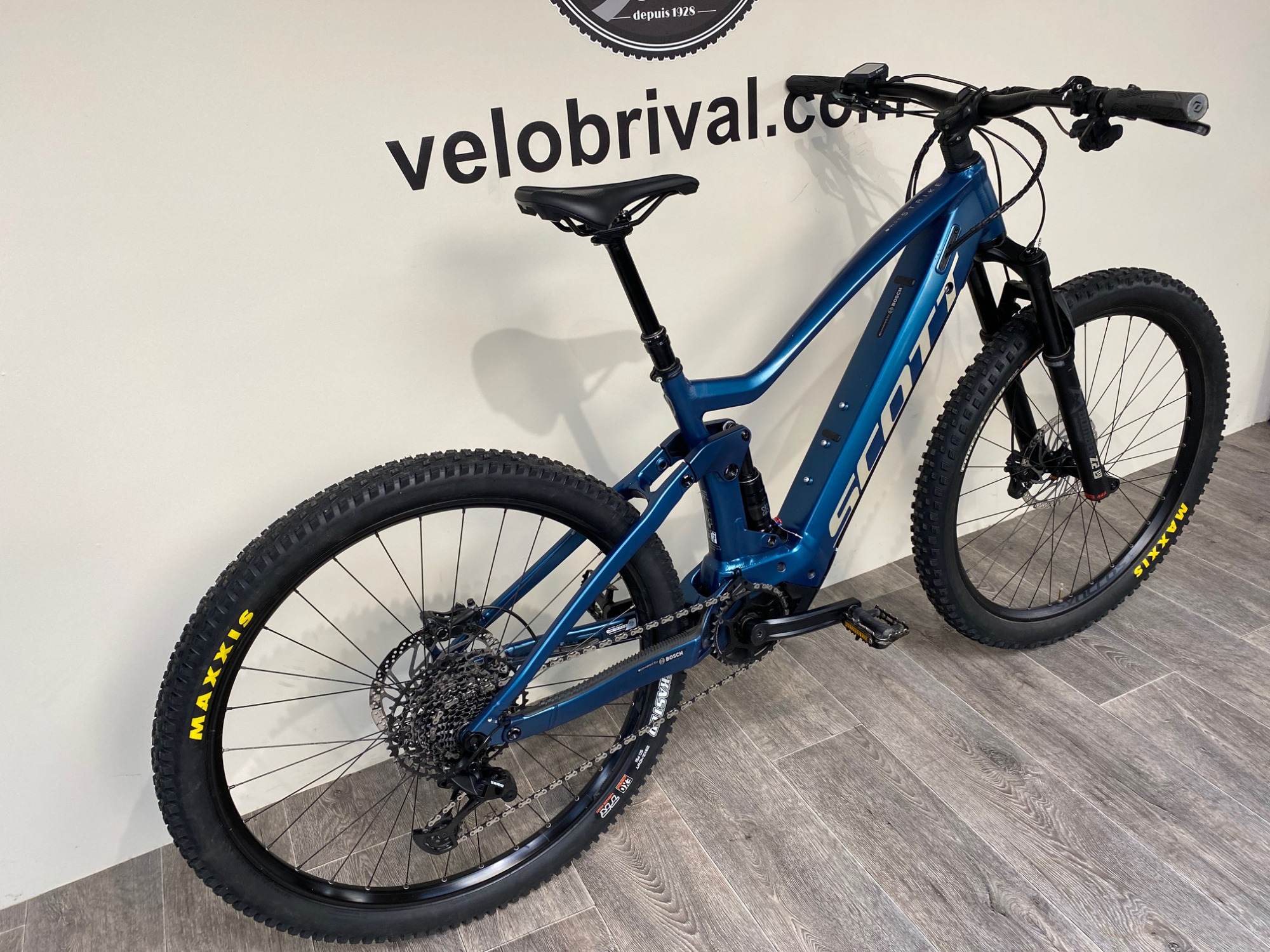

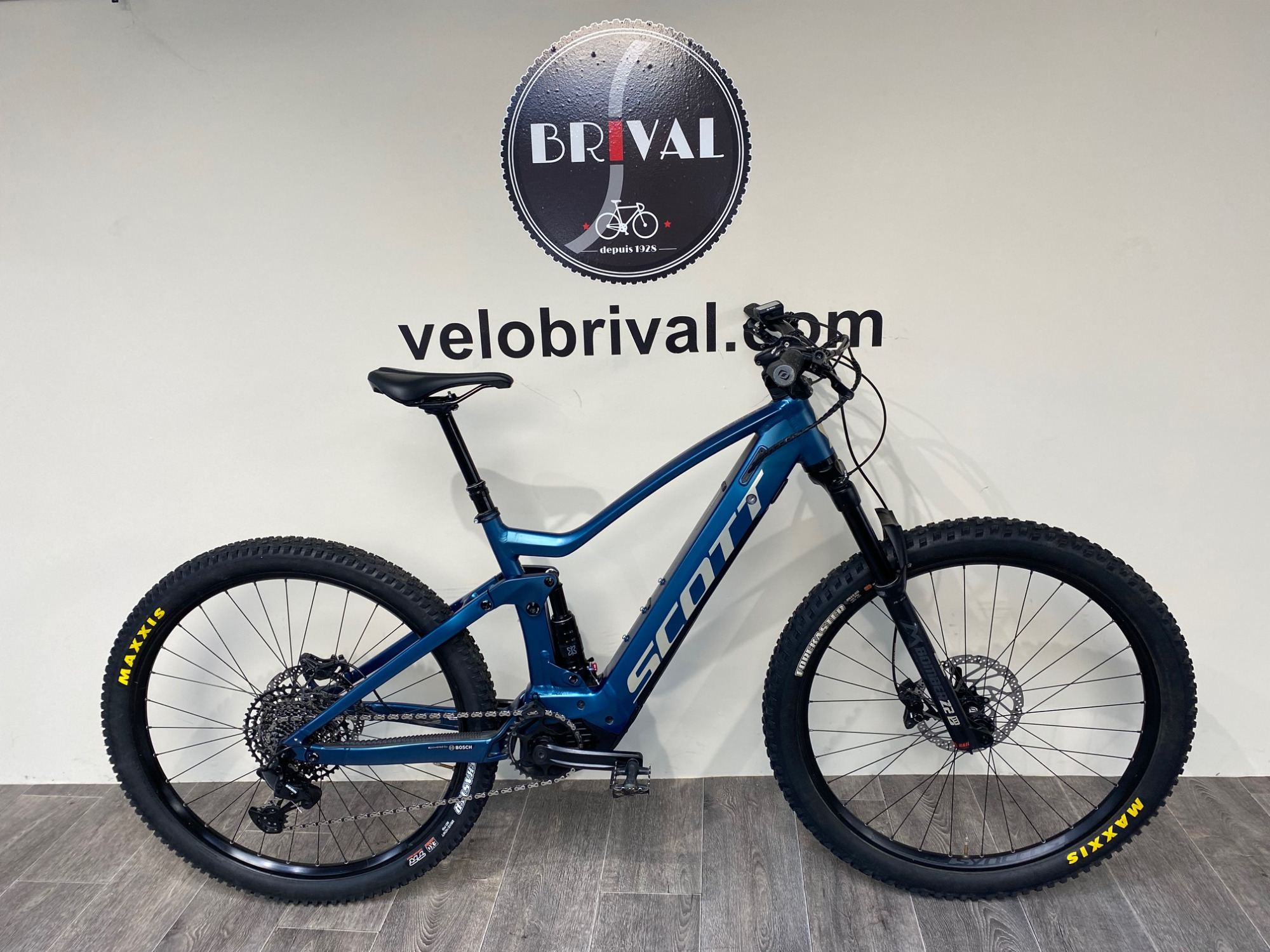

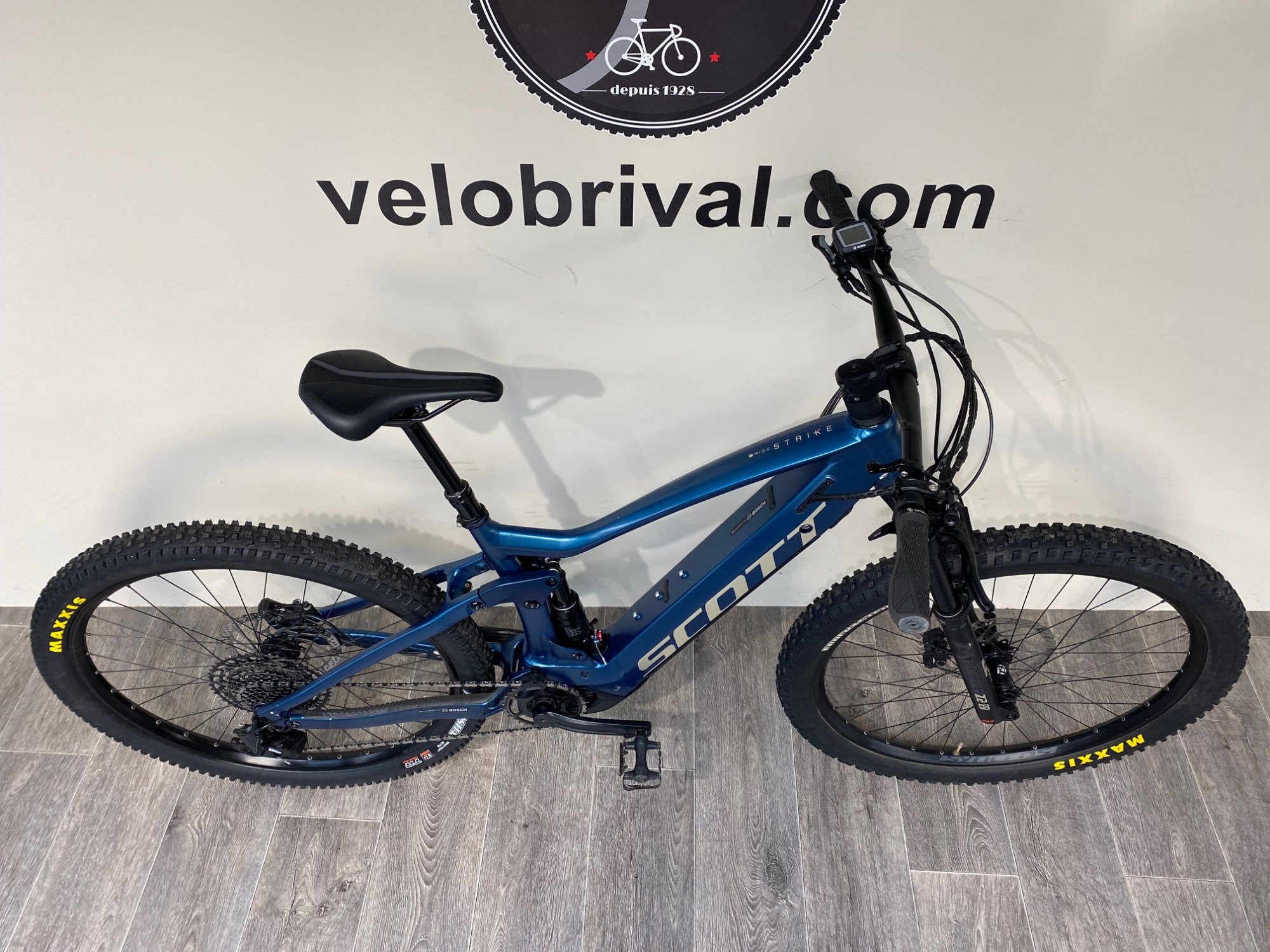

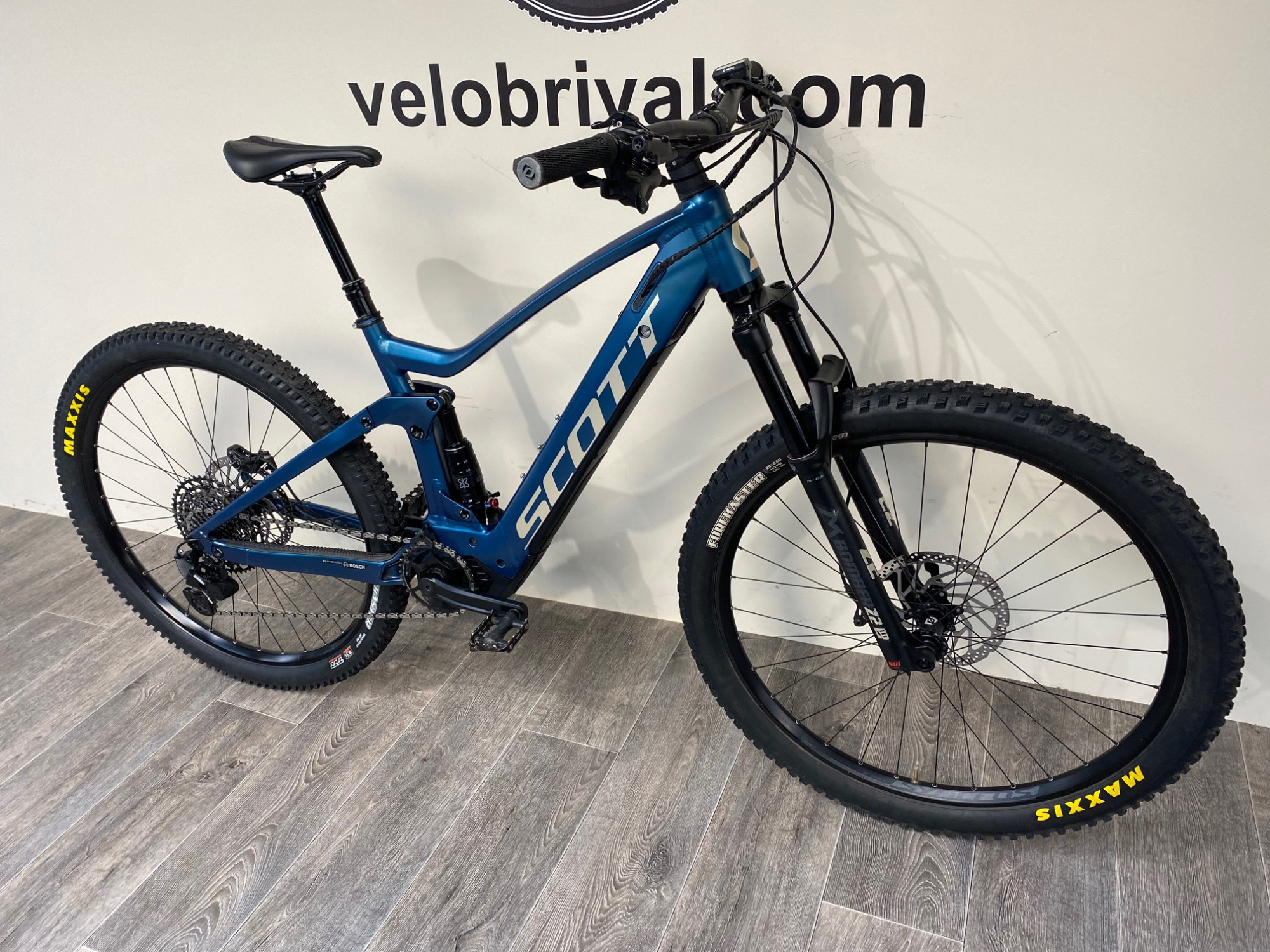

Scott ERIDE 930 - 2021

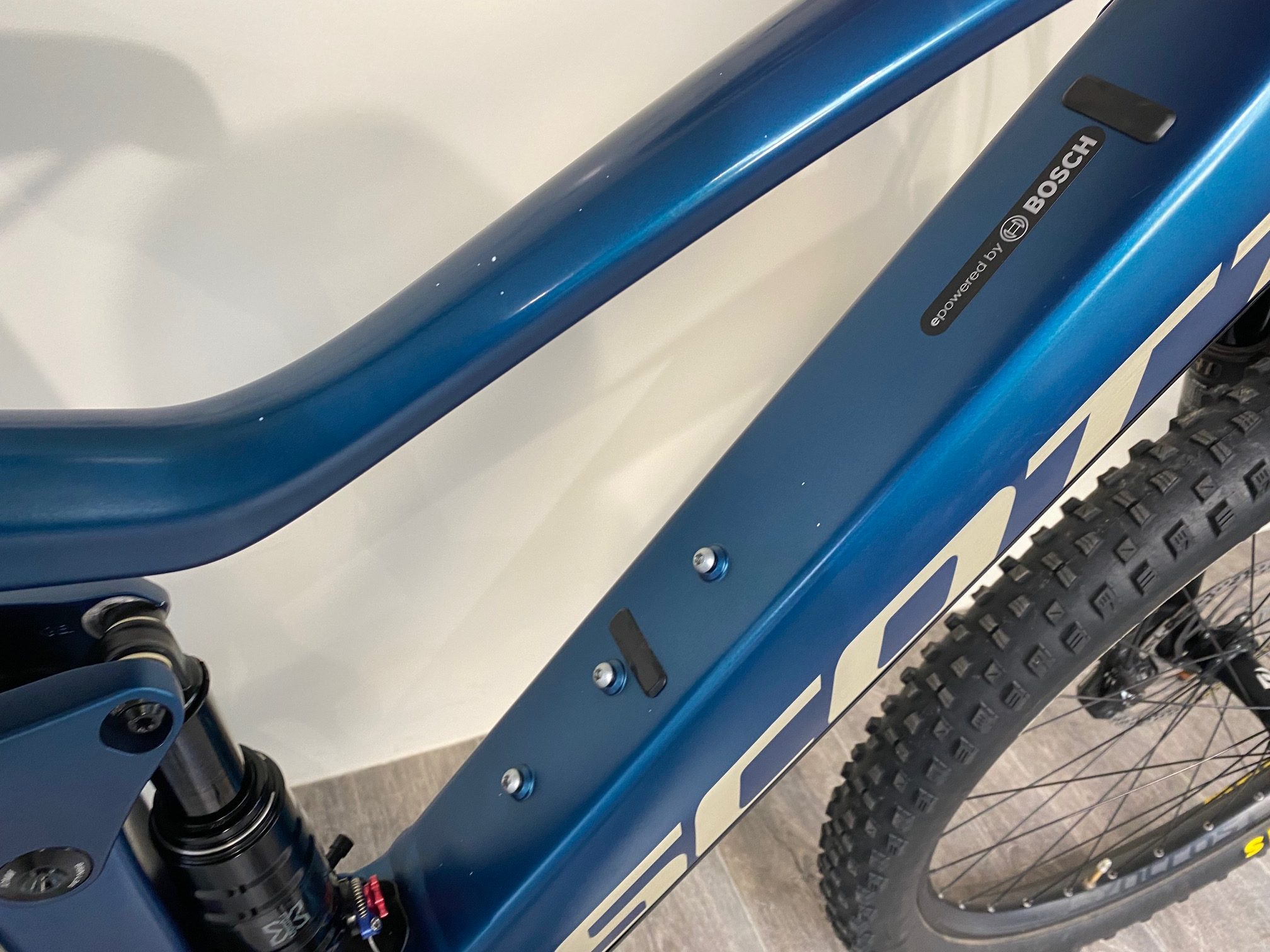

Cadre

Alloy Frame / Virtual 4 link kinematic VLK, 27.5″ and 29″ compatible / geo adj. / Boost 148x12mm, 140mm travel / Bosch Gen4 / Integr. removable Battery, Tapered Headtube E2, Central Kickstand Mount, Range Booster Ready

Suspension

Tout suspendu

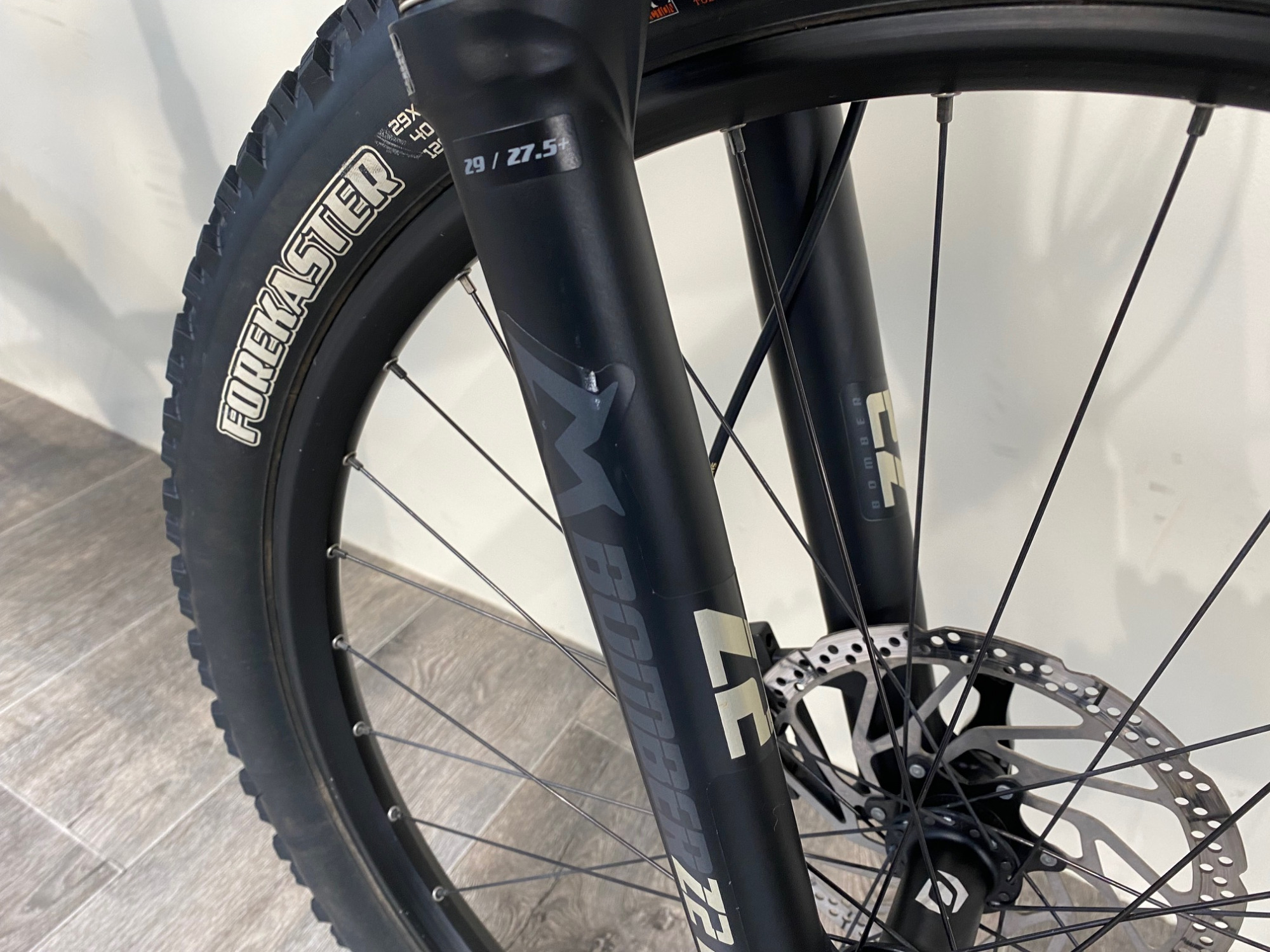

Fourche

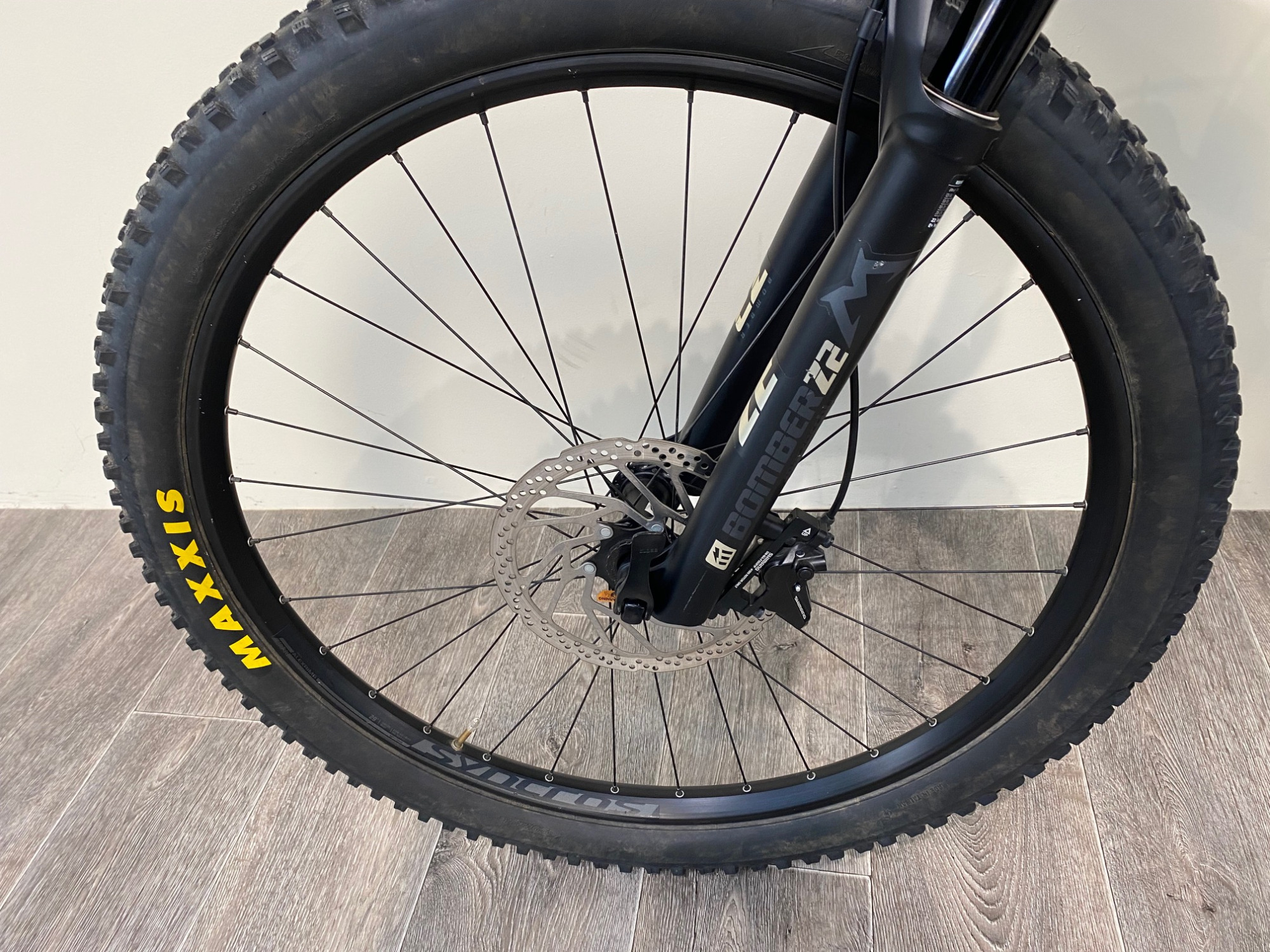

Marzocchi Z2 Air / eMTB+, Rail 3 / 3-Modes / 15x110mm QR axle / tapered steerer, 44mm offset / Reb. Adj. / Lockout / 140mm travel

Amortisseur

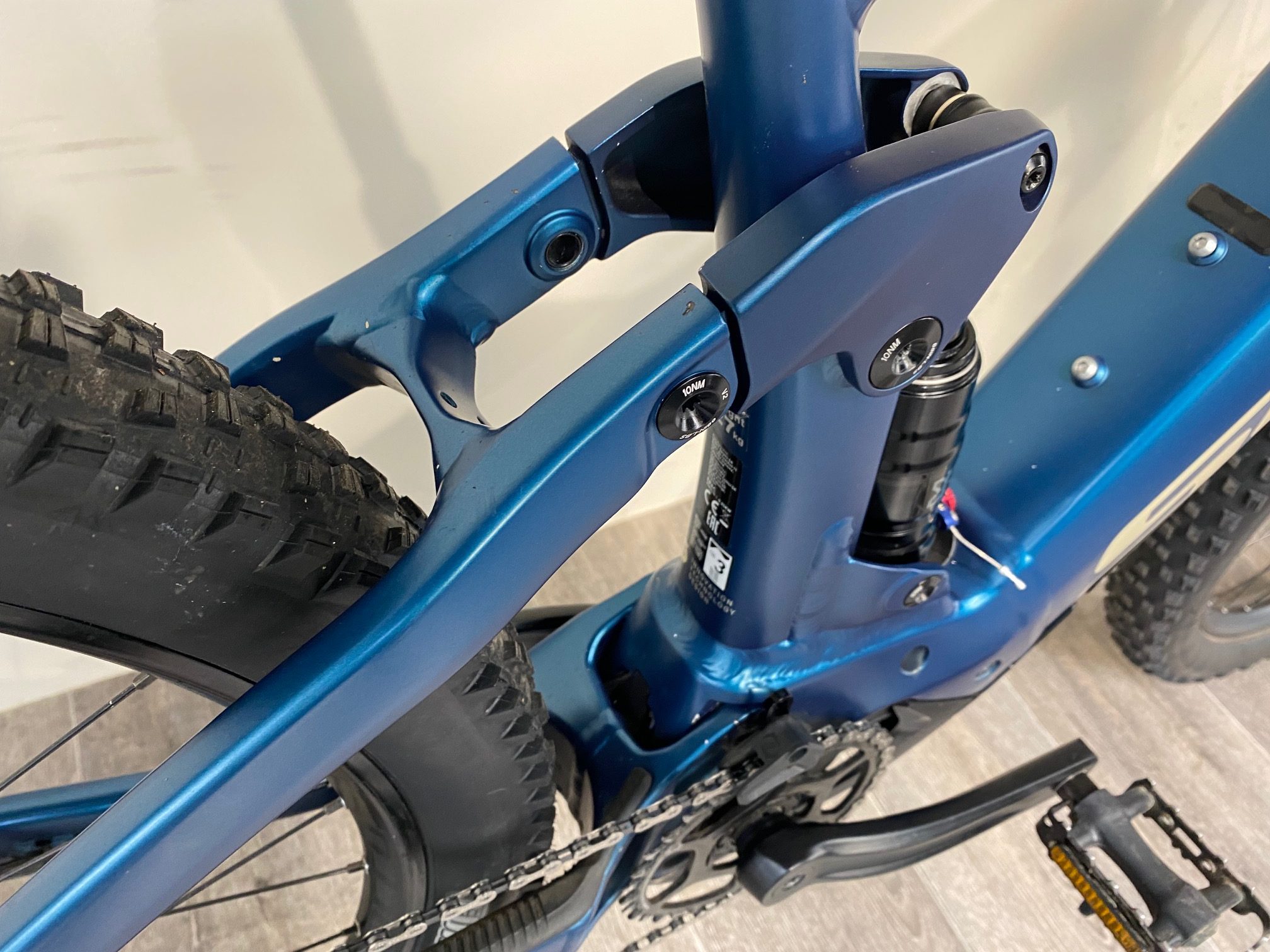

X-Fusion NUDE Trunnion, SCOTT custom w. travel / geo adj., 3 modes: Lockout-Traction Control-Descend, Reb. Adj., Travel 140-90-Lockout / 185x50mm

Débattement

140 mm

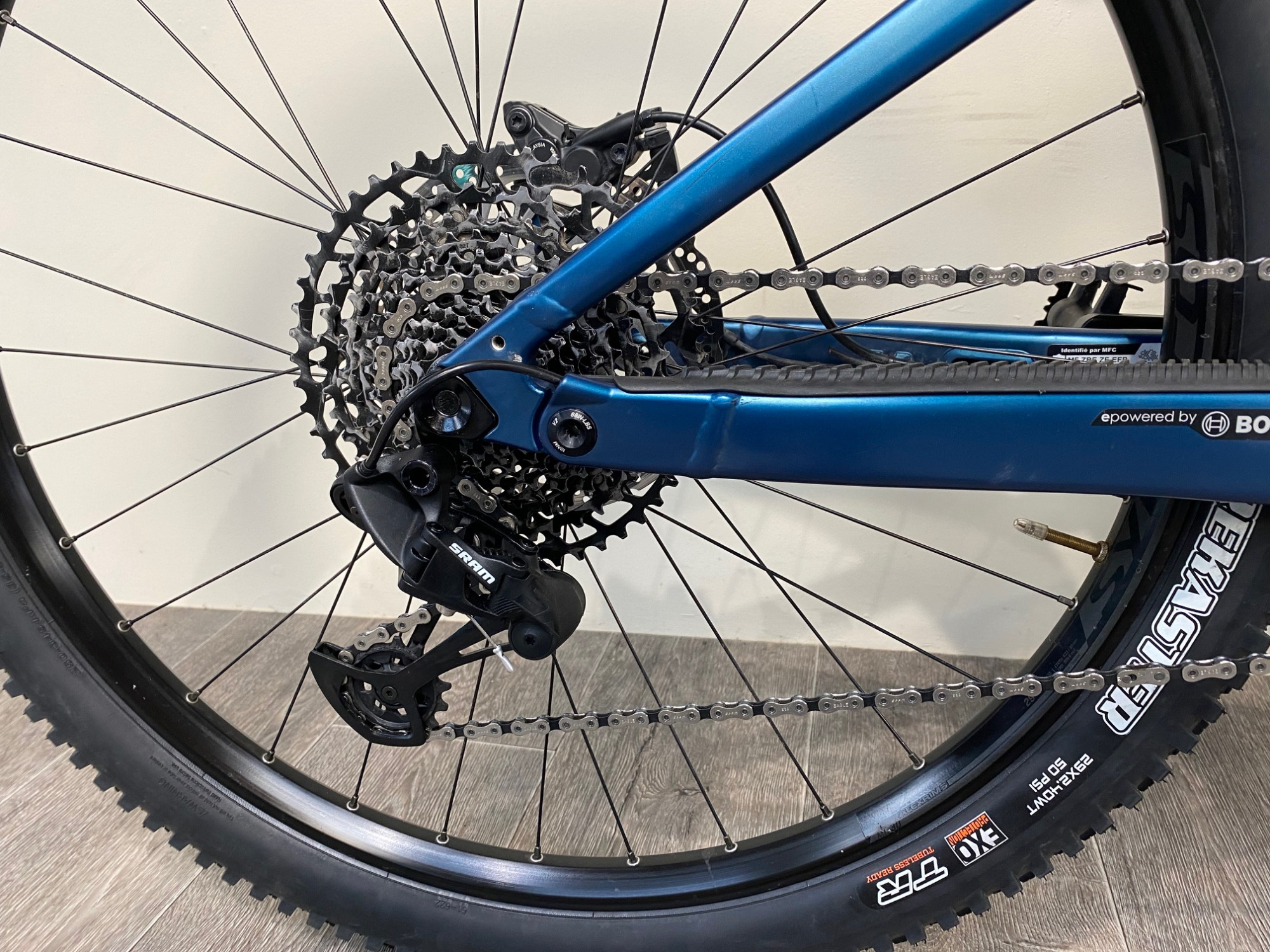

Dérailleur arrière

SRAM SX Eagle / 12 Speed

Manettes

SRAM SX Eagle Single Click

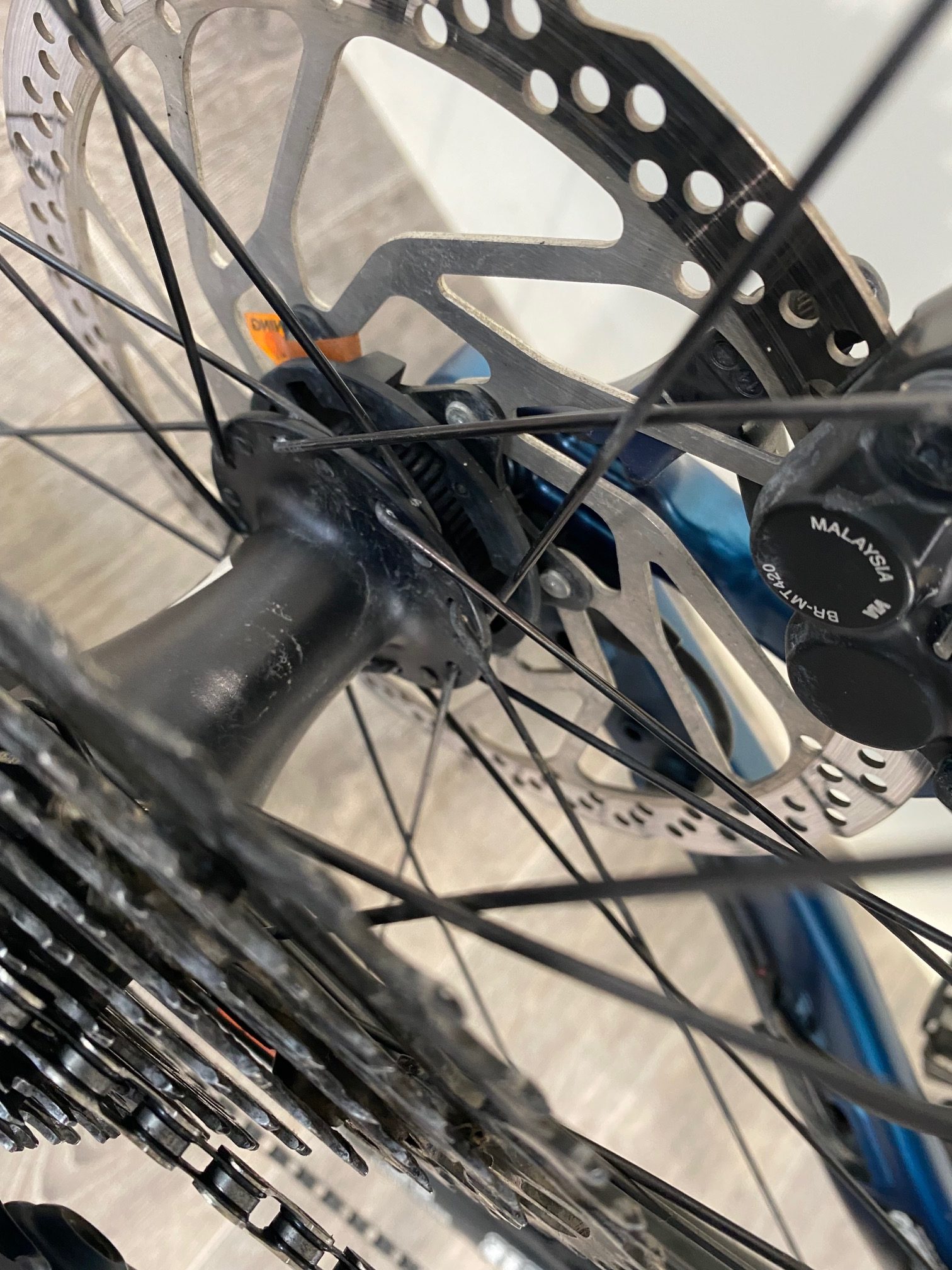

Freins

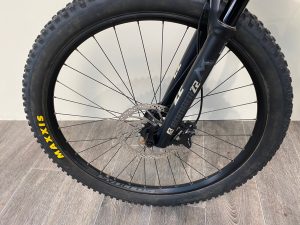

Shimano BR-MT420 4 Piston; disc Front: SM-RT30 CL 203mm / Rear: RT-EM300 CL 203mm

Diamètre roues

29 pouces

Roues

moyeux AV Formula CL-811 / 15x110mm; AR Formula CL-148S / Boost 148x12mm ; jantes Stainless Black

Pneu

Maxxis Rekon / 29×2.6″ / 60TPI Wire Bead, EXO, Dual à l’avant; Maxxis Rekon / 29×2.6″ / 60TPI Wire Bead, EXO, Dual à l’arrière.

Cassette

SRAM PG1210 / 11-50 T

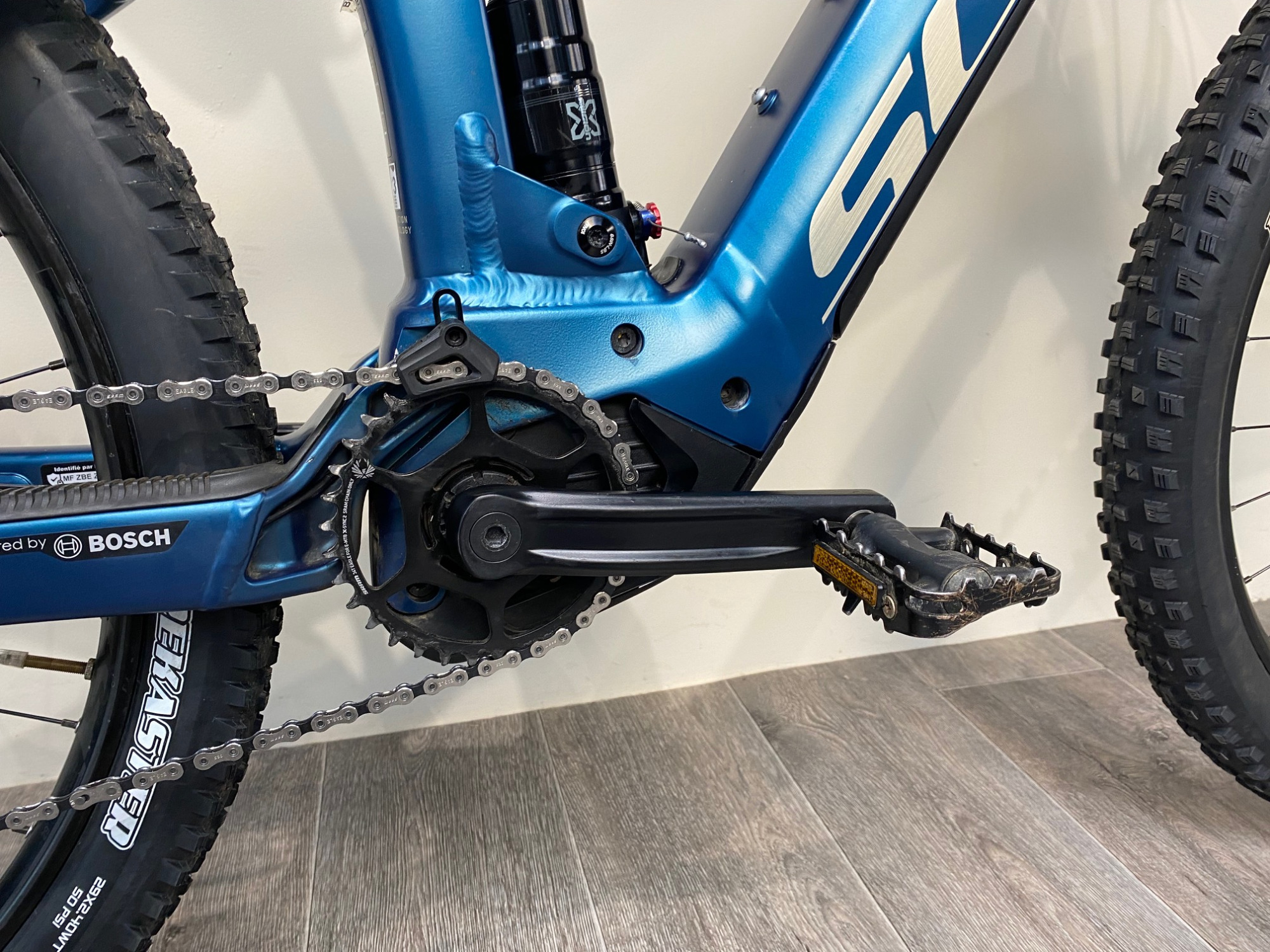

Pédalier

FSA CK-320 / 165mm / 34T

Potence

Syncros FL2.0 / 6061 Alloy, L-Shape Spacer & Top Cap / 31.8mm / 6° / 1 1/8″

Cintre

Syncros Hixon 2.0 Rise / Alloy 6061D.B., 20mm rise / 8° / 760mm, Syncros Comfort lock-on grips

Selle

Syncros ER2.5

Tige

Syncros Duncan Dropper Post 2.5, 31.6mm / S size 100mm / M 125mm / L size 150mm / XL 170mm

Batterie

PowerTube 625Wh

Moteur

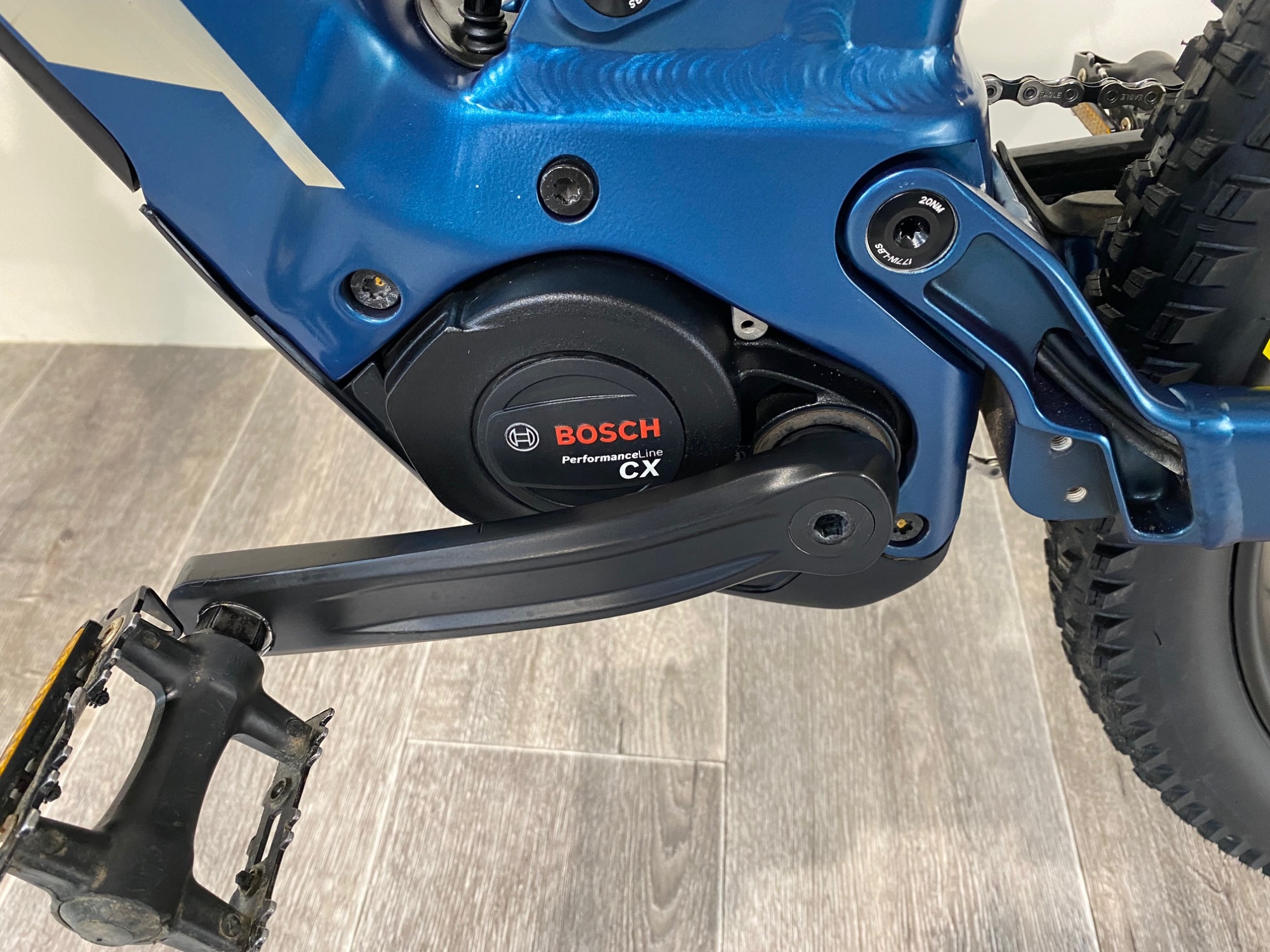

Bosch Performance CX, EU: 25kmh / US: 20mph

Affichage

Bosch Purion
