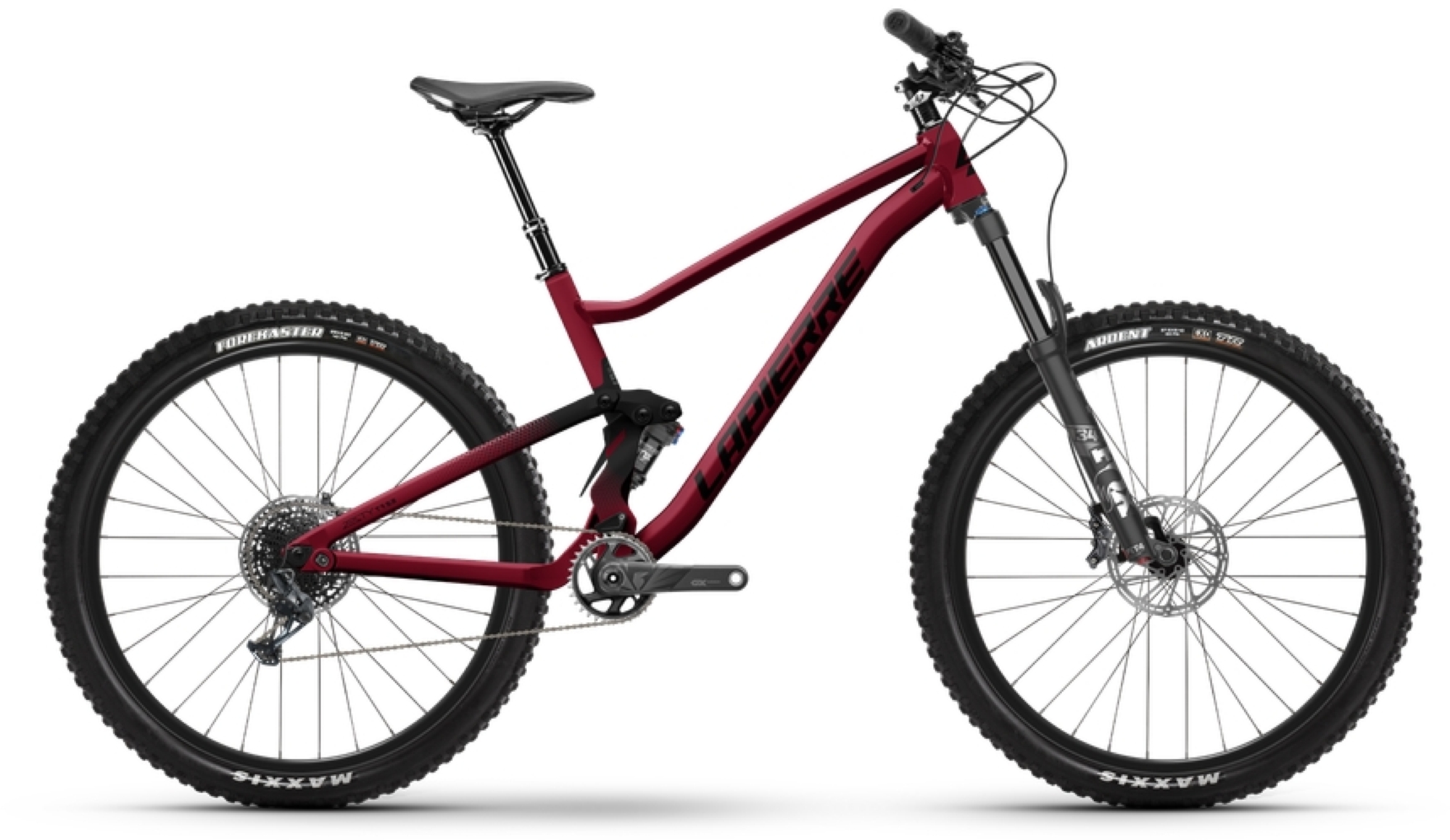

Lapierre Zesty TR 5.9 2025

Cadre et plus
Max loadable weight (KG):
120 kg
Front Fork Type:
Suspension
Suspension Type:
Fully
Travel Front:
130 mm
Fourche:
FOX Factory, Rhythm 34 Float Remote 2 Pos 15×110 130 mm
Cadre:
Zesty TR Supreme 5 alloy, Aluminium, Homme
Amortisseur:
FOX Factory, Float DPS Performance 3-position lever, LV Evol 165x45mm
Cintre et Selle
Handlebar Diameter:
31.8 mm
Handlebar Material:
Aluminium
Handlebar Rise:
15
Handlebar Width:
760 mm
Seatpost Material:
Aluminium
Seatpost Travel (mm):
150 mm
Stem Length:
45 mm
Poignée:
Lapierre, Anodized, small diameter
Cintre:
Lapierre, Flat bar, Alloy 6061DB, Rise: 15 mm, Ø: 31.8 mm
Jeu de direction:
Fsa, Integrated, Orbit Zero stack
Selle:
Selle Royal, Vivo
Tige de Selle:
Lapierre, Dropperpost, Dropper, Ø: 31.6 mm, travel: 150 mm
Potence:
Lapierre, Thirty One alloy, 0°, Ø: 31.8 mm, L: 45 mm
Géométrie
Bottom bracket drop [mm]:
35 mm
Chain stay length [mm]:
431.4 mm
Fork offset [mm]:
545 mm
Fork total length [mm]:
44 mm
Head tube angle:
66 degrees
Head tube length [mm]:
120 mm
Reach [mm]:
458 mm
Stack [mm]:
621.9 mm
Seat tube angle:
77.1 degrees
Seat tube length [mm]:
430 mm
Top tube length [mm]:
599.9 mm
Wheelbase [mm]:
1197.4 mm
Roues et composants de roues
Moyeu Avant:
Fastace, DF813, boost 15×110, 32H
Moyeu Arrière:
Fastace, DR813, 4 sealed bearings, boost 12×148, 32H
Rim Description:
Rodi, Ryot 25×622, 32H Tubeless Ready
Jante Arrière:
Rodi, Ryot 25×622, 32H Tubeless Ready
Pneu:
Maxxis, Ardent, EXO, TR, 62-622
Pneu Arrière:
Maxxis, Forekaster, EXO, TR
Taille de Roue:
29, 29
Système de freinage
Brake Rear Mount:
Post Mount
Frein Avant:
Sram, Frein à disque hydraulique, G2 R Diffusion black 4 pistons, 200 mm
Frein Arrière:
Sram, Frein à disque hydraulique, G2 R Diffusion black 4 pistons, 180 mm
Levier de frein:
Sram, G2 R Diffusion black-BL
Disques de frein:
Sram, Centerline Rounded 200 / 180 mm, 6 bolt Disc
Transmission
Cassette Teeth:
11-50T
Crankset Teeth:
32T
Crankset Type:
single
Number Of Gears:
12
Boitier de pédalier:
Sram, PressFit, DUB MTB92
Cassette:
Sram, Cassette, Eagle PG-1210 12s, XD
Chaîne:
Sram, Chaîne, SX Eagle 12s
Guide chaîne:
Lapierre, 1x
Pédalier:
Sram, GX Eagle boost 148 DUB
Dérailleur Arrière:
Sram, GX Lunar Eagle 12s
Vitesse:
Sram, Derailleur
Pédales:
NW-91K
Selecteur de vitesse Droit:
Sram, Triggershift, NX Eagle12s
