Cadre et plus
Taille:
XS,S,M,L,XL
Max loadable weight (KG):
120 kg
Front Fork Type:
Suspension
Suspension Type:
Fully
Travel Front:
180 mm

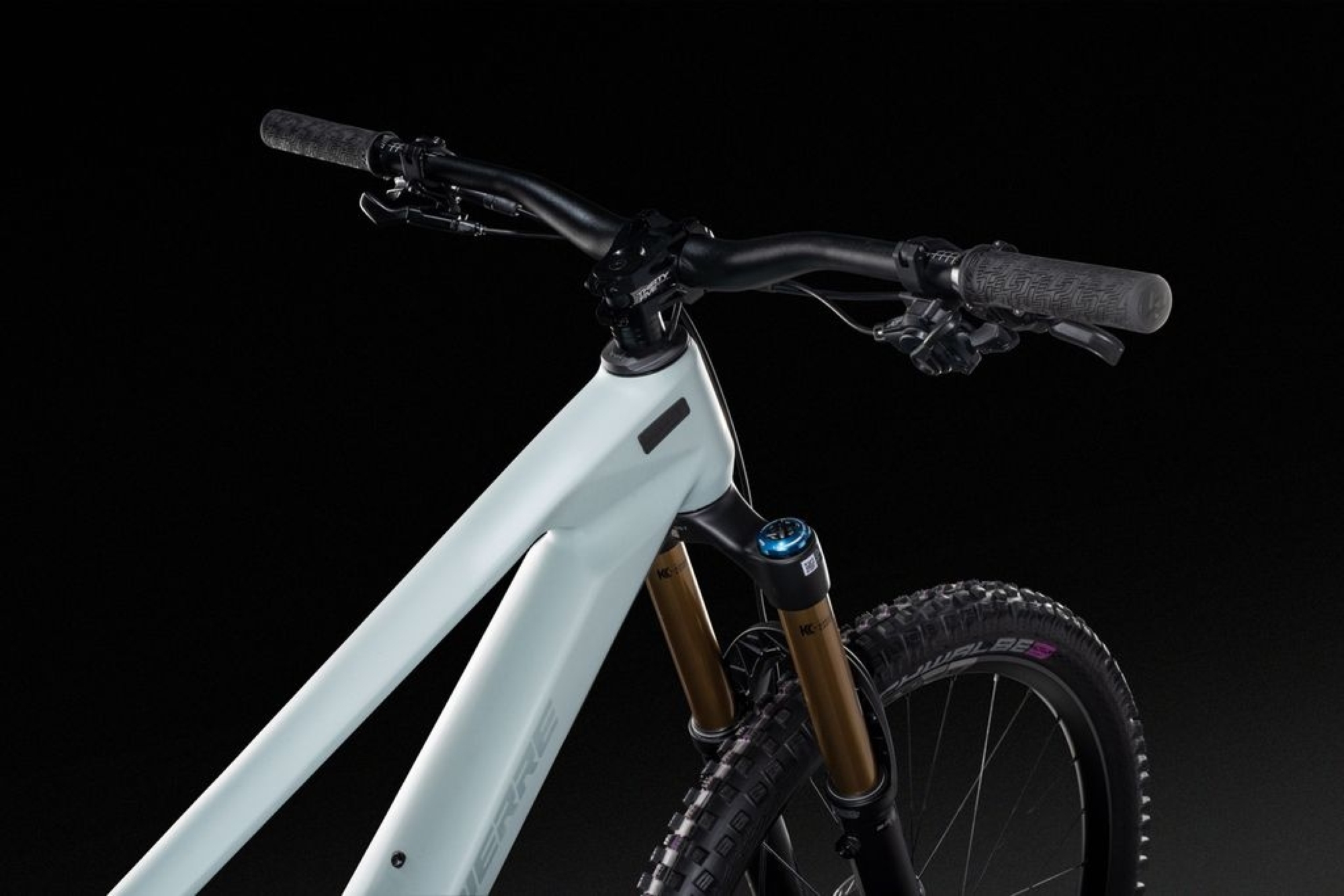

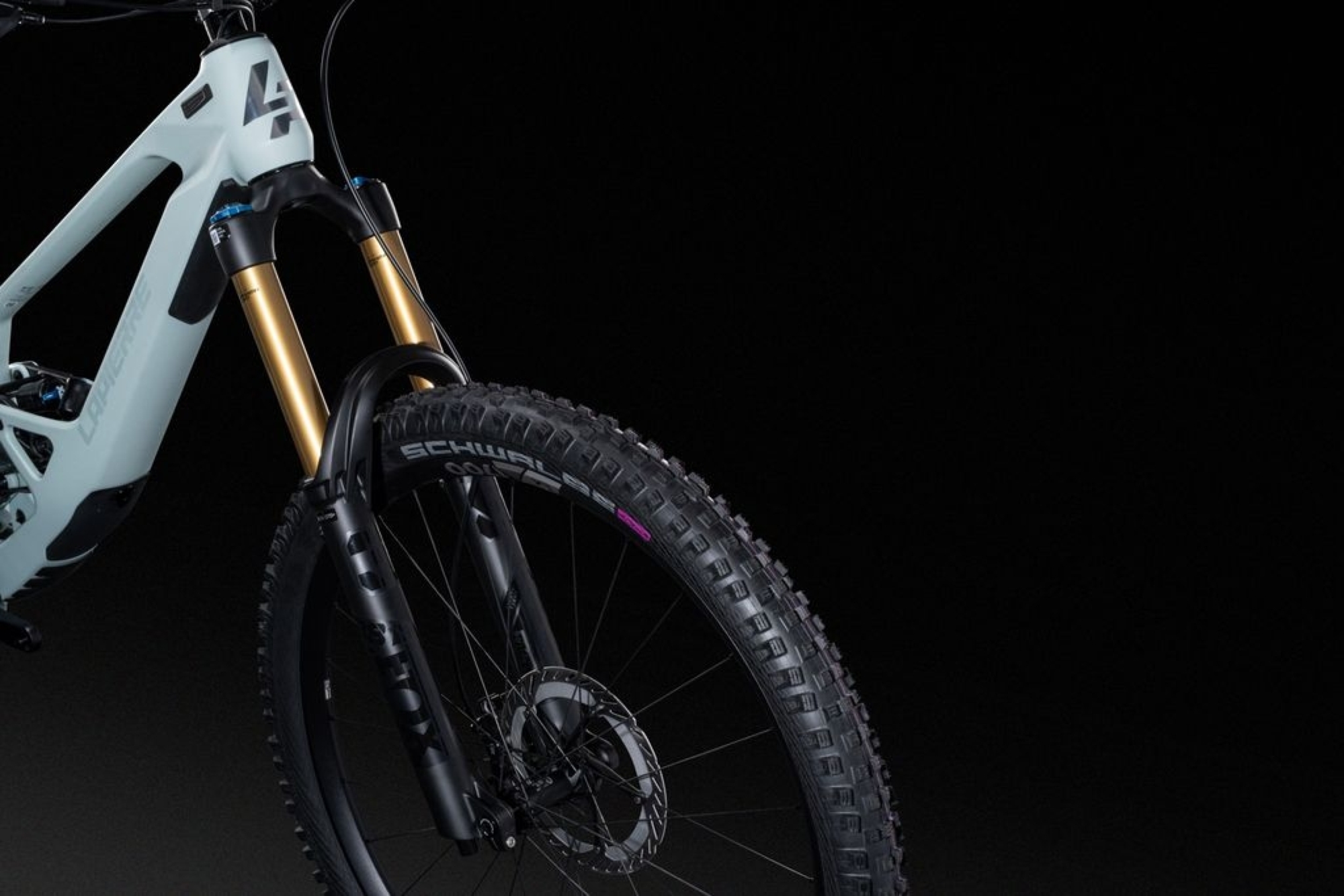

Fourche:
FOX Factory, 38 Float Factory GRIP X2 15×110 29″ 180 mm

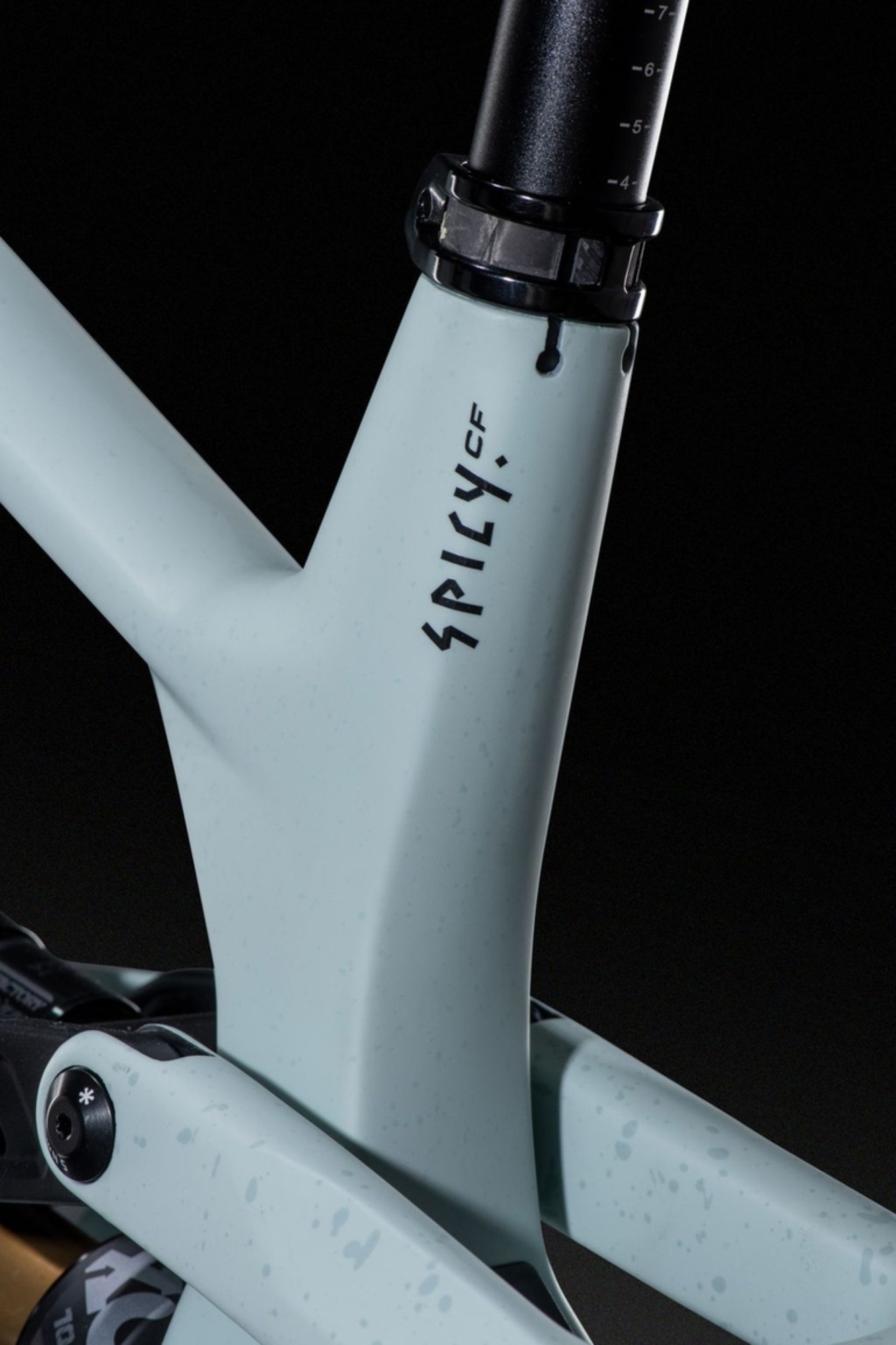

Cadre:
Carbon UD SLI, Carbone, Homme

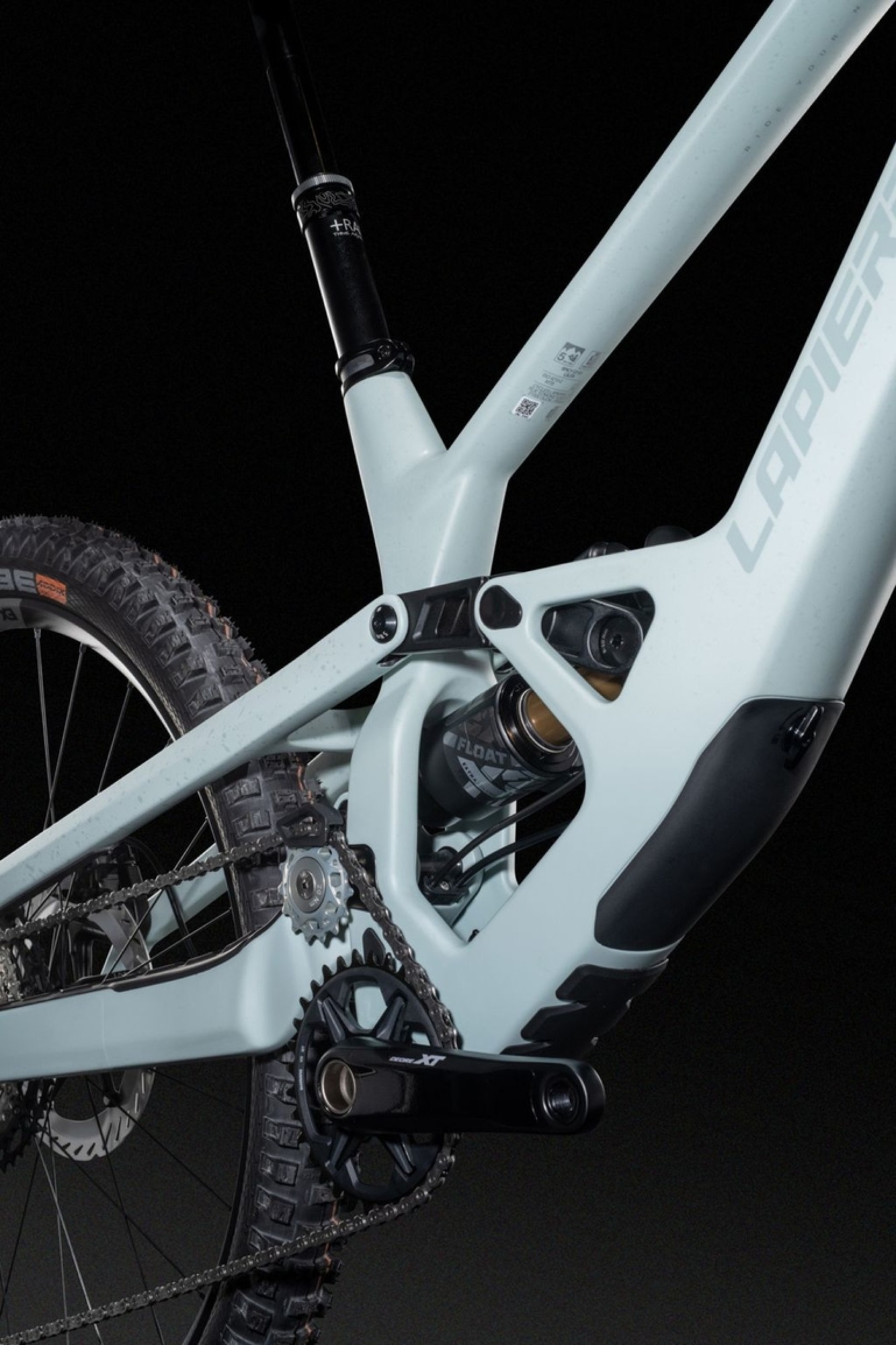

Amortisseur:
FOX Factory, Float X2 Factory 2Pos 205x65mm Trunnion/15x8mm
Cintre et Selle
Handlebar Diameter:
35 mm
Handlebar Material:
Aluminium
Handlebar Rise:
30
Handlebar Width:
800 mm
Seatpost Material:
Aluminium
Seatpost Travel (mm):
125 mm,150 mm,170 mm,200 mm
Stem Length:
35 mm,45 mm
Poignée:
Lapierre, Anodized, small diameter

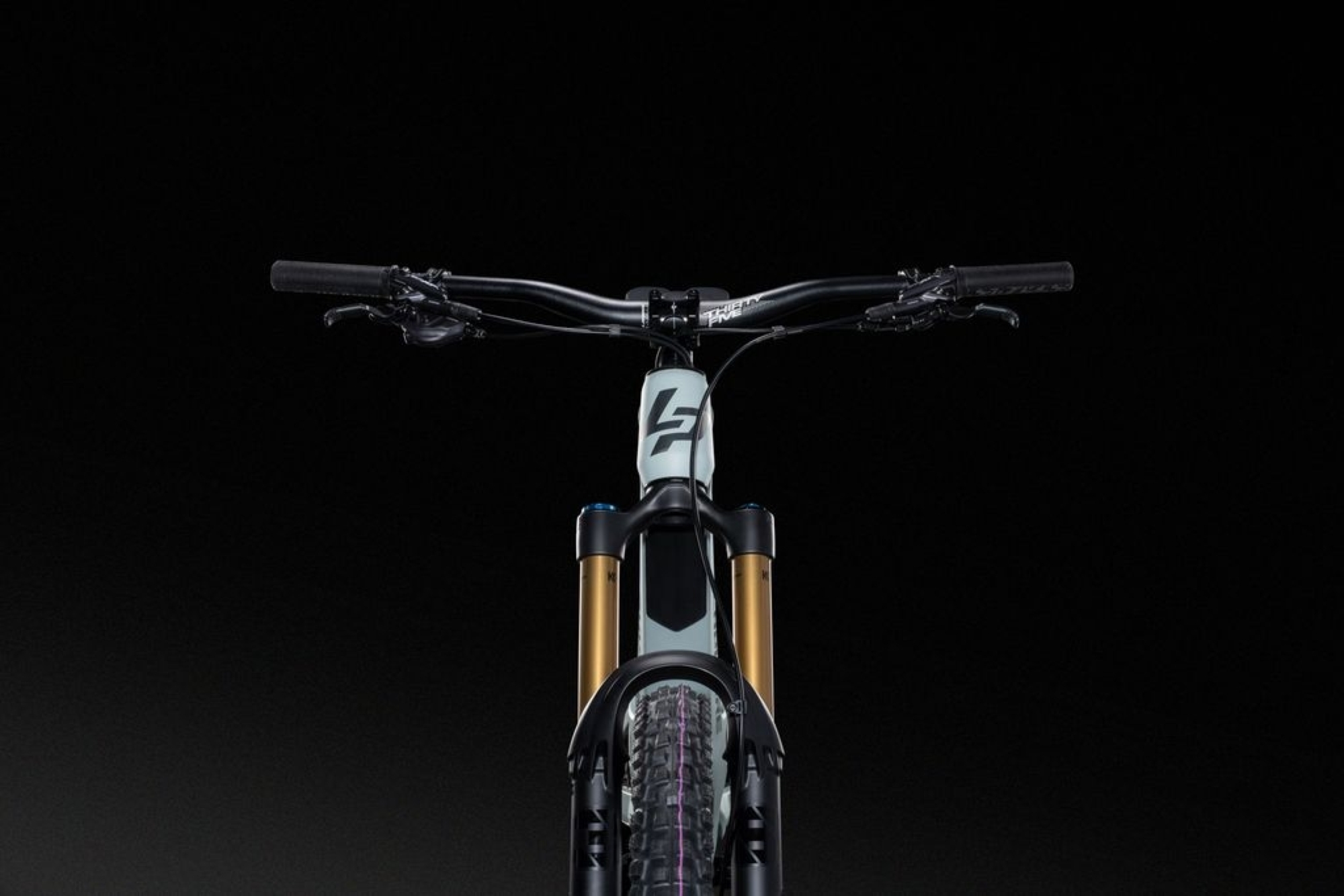

Cintre:
Lapierre, Flat bar, Thirty Five 6061DB, Rise: 30 mm, Ø: 35 mm
Jeu de direction:
Acros, Integrated, ZS56/ZS56 Block Lock

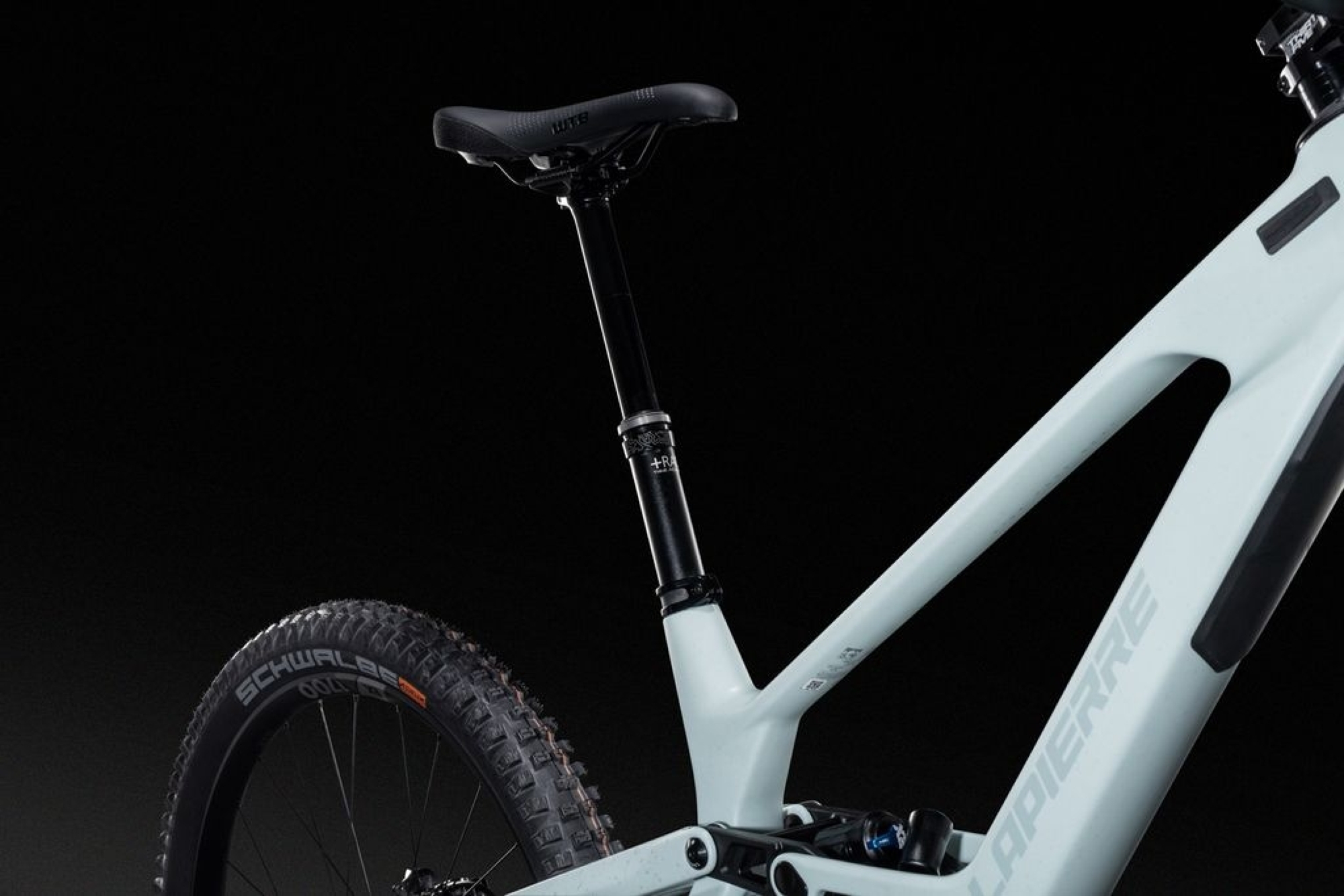

Selle:
WTB, Volt Cromoly 142 mm
Tige de Selle:
JD, Dropperpost, YSI05, Ø: 31.6 mm, travel: 125 mm
Potence:
Lapierre, Thirty Five alloy, 0°, Ø: 31.8 mm, L: 35 mm

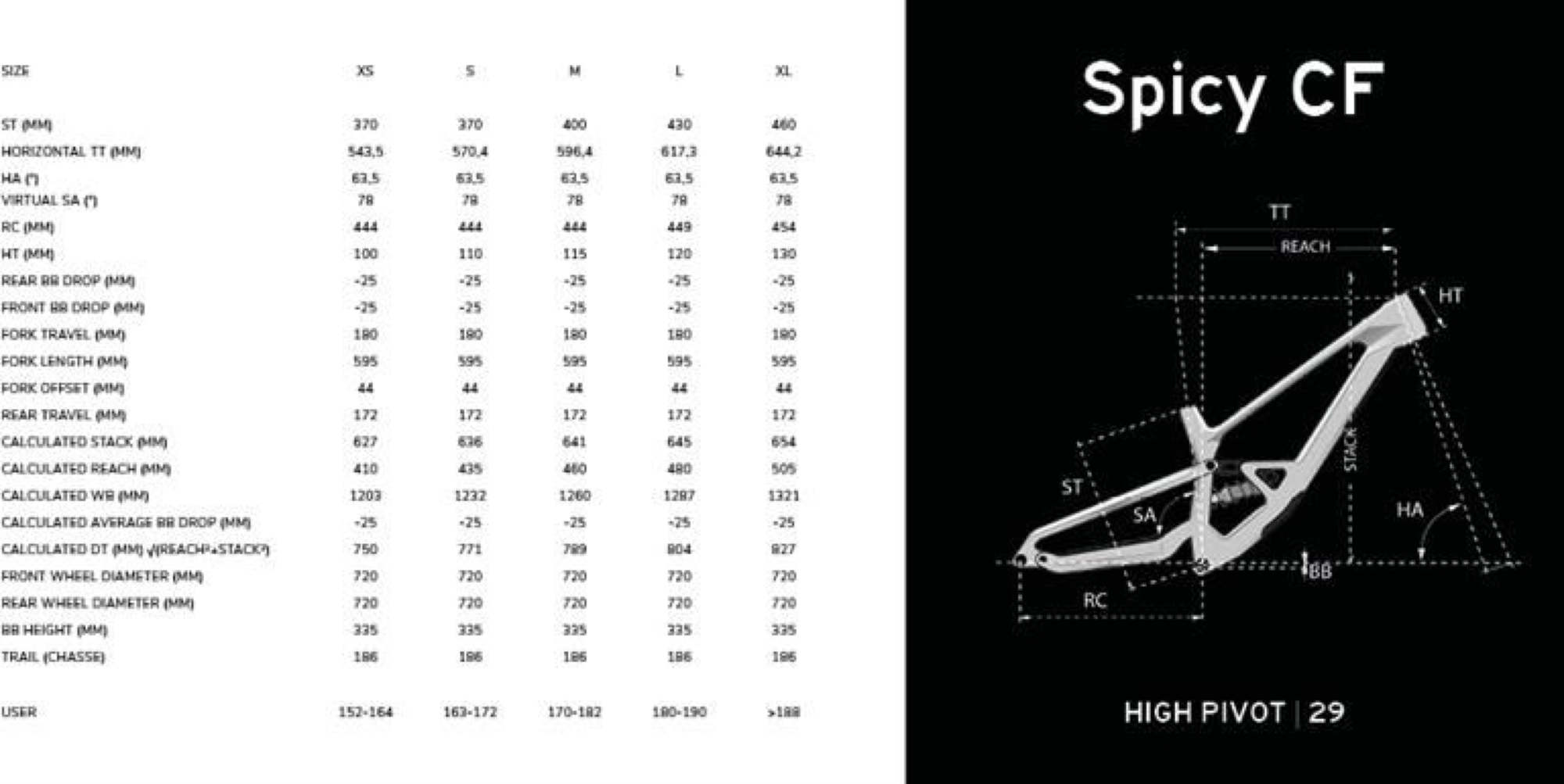

Géométrie
Bottom bracket drop [mm]:
25 mm
Chain stay length [mm]:
440 mm,445 mm,450 mm
Fork offset [mm]:
595 mm
Fork total length [mm]:
44 mm
Head tube angle:
63.5 degrees
Head tube length [mm]:
100 mm,110 mm,115 mm,120 mm,130 mm
Reach [mm]:
410 mm,435 mm,460 mm,480 mm,505 mm
Stack [mm]:
627 mm,636 mm,641 mm,645 mm,654 mm
Seat tube angle:
78 degrees
Seat tube length [mm]:
350 mm,370 mm,400 mm,430 mm,460 mm
Top tube length [mm]:
543.5 mm,570.4 mm,596.4 mm,617.3 mm,644.2 mm
Wheelbase [mm]:
1200 mm,1229 mm,1256 mm,1283 mm,1318 mm
Roues et composants de roues
Wheelset Material:
Aluminium
Taille de roue:
27
Pneu:
Schwalbe, MAGIC MARY Evo, Super Trail, TLE, ADDIX Ultra Soft, 62-622
Pneu Arrière:
Schwalbe, BIG BETTY, Super Trail, TLE, ADDIX Soft, 67TPI
Paire de Roues:
DT Swiss, EX1700 SPLINE 622x30c, Shimano Microspline, Centerlock
Roue Arrière:
DT Swiss, EX1700 SPLINE 622x30c, Shimano Microspline, Centerlock
Taille de Roue:
29, 27.5
Système de freinage
Brake Rear Mount:
Post Mount
Frein Avant:
Shimano, Frein à disque hydraulique, Deore XT M8100 4 pistons, 203 mm
Frein Arrière:
Shimano, Frein à disque hydraulique, Deore XT M8100 4 pistons, 180 mm
Levier de frein:
Shimano, Deore XT BL-M8000
Disques de frein:
Shimano, RT-CL800 203 / 180 mm, Centerlock
Transmission
Cassette Teeth:
10-51T
Crankset Teeth:
32T
Crankset Type:
single
Number Of Gears:
12
Boitier de pédalier:
Shimano, BSA, MT801
Cassette:
Shimano, Cassette, Deore XT CS-M8100-12, MICRO SPLINE
Chaîne:
Shimano, Chaîne, Deore XT CN-M8100-12

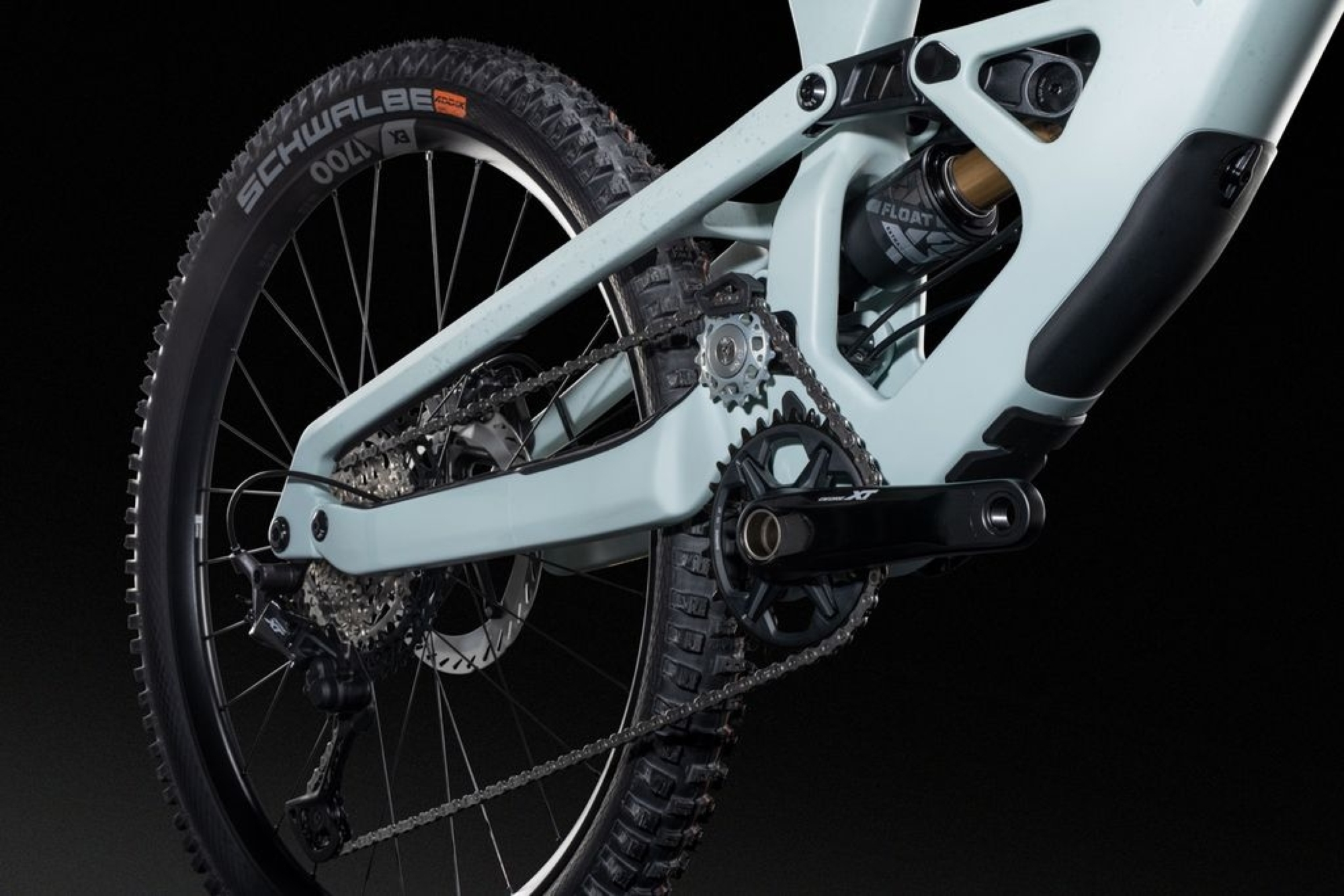

Pédalier:
Shimano, Deore XT FC-M8100

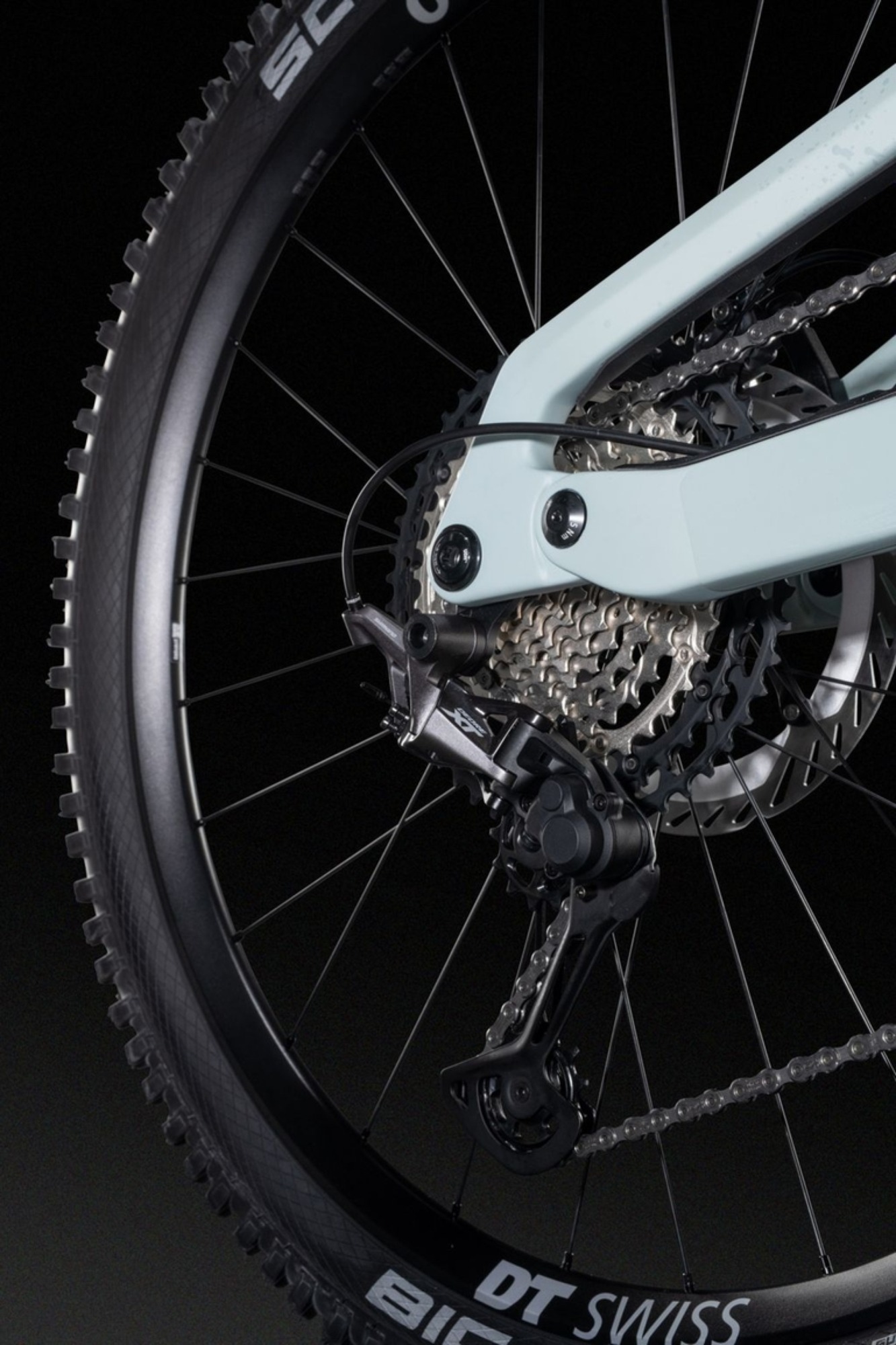

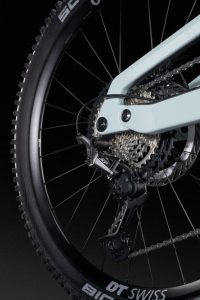

Dérailleur Arrière:
Shimano, Deore XT 12s Shadow +
Vitesse:
Shimano, Derailleur
Pédales:
XLC, by VP
Selecteur de vitesse Gauche:
Shimano, Triggershift, Deore XT 12s Rapidfire
Selecteur de vitesse Droit:
Shimano, Triggershift, Deore XT 12s Rapidfire SL-M8100-R
LSJTA
