Lapierre EDGE 9.9 2025

Cadre et plus
Taille:
S,M,L,XL
Max loadable weight (KG):
120 kg
Front Fork Type:
Suspension
Suspension Type:
Hardtail
Travel Front:
100 mm
Fourche:
Rockshox, Judy Silver TK Remote 29″ QR COIL 100 mm
Cadre:
Edge 29″ Supreme 5 alloy Disc, internal cable routing, Aluminium, Homme
Cintre et Selle
Handlebar Diameter:
31.8 mm
Handlebar Material:
Aluminium
Handlebar Width:
720 mm
Seatpost Material:
Aluminium
Stem Length:
60 mm
Poignée:
Herrmans, Lock-on DD30B 130mm
Cintre:
XLC, Flat bar, Alloy Top flat, Ø: 31.8 mm
Jeu de direction:
Fsa, Semi-integrated, NO.10 semi-integrated
Selle:
XLC
Tige de Selle:
XLC, Non Suspension, Alloy, Ø: 31.6 mm, L: 400 mm, 400 mm
Potence:
XLC, Alloy, 6°, Ø: 31.8 mm, L: 60 mm

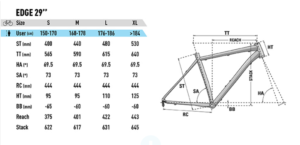

Géométrie
Bottom bracket drop [mm]:
60 mm
Chain stay length [mm]:
450 mm
Fork total length [mm]:
46 mm
Head tube angle:
68 degrees
Head tube length [mm]:
105 mm,115 mm,125 mm,135 mm
Reach [mm]:
391 mm,408 mm,425 mm,443 mm
Stack [mm]:
620 mm,629 mm,639 mm,648 mm
Seat tube angle:
73.5 degrees
Seat tube length [mm]:
400 mm,440 mm,480 mm,520 mm
Top tube length [mm]:
575 mm,595 mm,615 mm,635 mm
Wheelbase [mm]:
1113.2 mm,1134 mm,1155 mm,1176 mm
Roues et composants de roues
Taille de roue:
29
Moyeu Avant:
Shimano, HBQC300, 32H Centerlock QR
Moyeu Arrière:
Shimano, HBQC500-MS, 32H Centerlock QR
Rim Description:
Lapierre, Disc, 32H, 29″, 21-622
Jante Arrière:
Lapierre, Disc, 32H, 29″, 21-622
Pneu:
Schwalbe, Tough Tom, K-Guard, 50EPI, 57-622
Pneu Arrière:
Schwalbe, Rapid Rob, K-Guard, 50EPI
Taille de Roue:
29, 29
Système de freinage
Brake Rear Mount:
Post Mount
Frein Avant:
Shimano, Frein à disque hydraulique, MT200 2 pistons, 180 mm
Frein Arrière:
Shimano, Frein à disque hydraulique, MT200 2 pistons, 160 mm
Levier de frein:
Shimano, BL-MT200 – 3-Finger – Steel Lever
Disques de frein:
Shimano, SM-RT30 180 / 160 mm, Centerlock
Transmission
Cassette Teeth:
10-51T
Crankset Teeth:
30T
Crankset Type:
single
Number Of Gears:
12
Boitier de pédalier:
Shimano, BSA, external cups
Cassette:
Shimano, Cassette, Deore CS-M6100-12, MICRO SPLINE
Chaîne:
KMC, Chaîne, X-12 12s
Pédalier:
Shimano, Deore FC-MT512
Dérailleur Arrière:
Shimano, Deore 12s Shadow +
Vitesse:
Shimano, Derailleur
Pédales:
FPD, NW-91K Steel cage
Selecteur de vitesse Droit:
Shimano, Triggershift, Deore Rapidfire SL-M6100-IR
