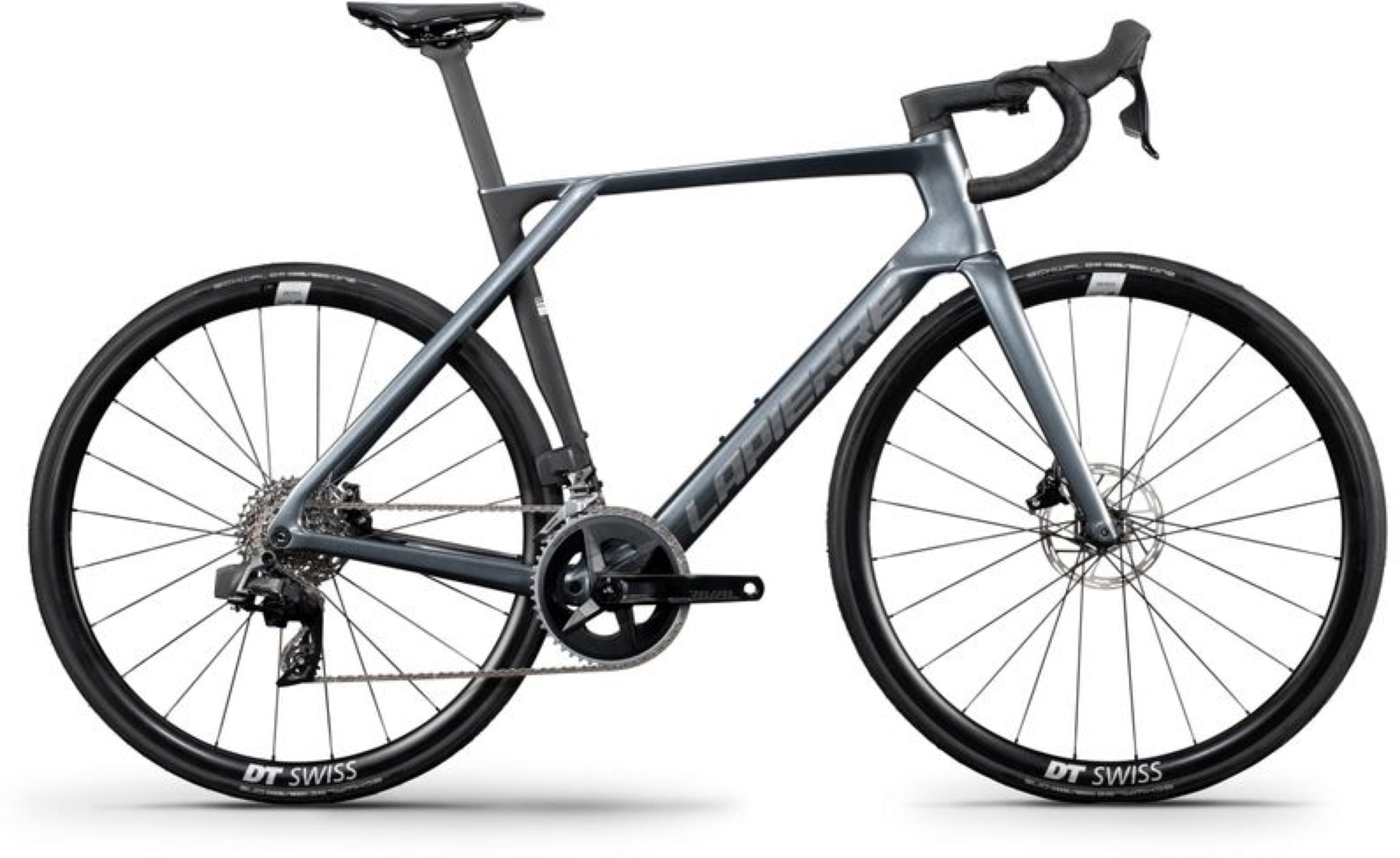

Lapierre XELIUS DRS 6.0 AXS 2025

Cadre et plus
Taille:
XS,S,M,L,XL,XXL
Max loadable weight (KG):
110 kg
Front Fork Type:
Non Suspension
Fourche:
Lapierre, Carbon UD SLI
Cadre:
Carbone, Homme
Cintre et Selle
Poignée:
Lapierre
Cintre:
Lapierre, Drop bar, Carbon Aero, Drop: 130 mm, Reach: 70 mm, Flare: 5°
Jeu de direction:
Acros, Integrated, Integrated
Selle:
Prologo, Dimension STN rails
Tige de Selle:
Lapierre, Non Suspension, Carbon, Xelius DRS, 0 mm Offset, L: 350 mm
Potence:
Lapierre, Alloy, semi-int. routing, -10°, Ø: 31.8 mm, L: 80 mm
Géométrie
Bottom bracket drop [mm]:
67 mm
Chain stay length [mm]:
405 mm
Fork offset [mm]:
368 mm
Fork total length [mm]:
50 mm
Head tube angle:
72 degrees,73 degrees,74 degrees
Head tube length [mm]:
105 mm,120 mm,140 mm,160 mm,180 mm,200 mm
Reach [mm]:
376 mm,383 mm,393 mm,403 mm,415 mm,428 mm
Stack [mm]:
501 mm,516 mm,538 mm,557 mm,580 mm,599 mm
Seat tube angle:
74 degrees
Seat tube length [mm]:
440 mm,460 mm,490 mm,520 mm,550 mm,580 mm
Top tube length [mm]:
520 mm,531 mm,547 mm,568 mm,587 mm,605 mm
Wheelbase [mm]:
969 mm,981 mm,989 mm,1005 mm,1014 mm,1032 mm
Roues et composants de roues
Wheelset Material:
Aluminium
Pneu:
Schwalbe, One Performance, RaceGuard, MicroSkin, 25-622
Paire de Roues:
DT Swiss, E1800 Spline 30 mm, Centerlock, Tubeless compatible
Roue Arrière:
DT Swiss, E1800 Spline, Centerlock, Tubeless compatible, XD Driver
Taille de Roue:
28
Système de freinage
Brake Rear Mount:
Flat Mount
Frein Avant:
Sram, Frein à disque hydraulique, Rival ETAP AXS, 160 mm
Frein Arrière:
Sram, Frein à disque hydraulique, Rival ETAP AXS, 140 mm
Transmission
Cassette Teeth:
10-36T
Crankset Teeth:
48-35T
Crankset Type:
double
Number Of Gears:
24
Boitier de pédalier:
Sram, PressFit, DUB 86.5 Road
Cassette:
Sram, Cassette, XG-1250 D1 12s, XD
Chaîne:
Sram, Chaîne, Rival 12s
Pédalier:
Sram, Rival D1 DUB
Derailleur Front Description:
Sram, Rival ETAP AXS Brazed-On
Dérailleur Arrière:
Sram, Rival ETAP AXS, 12s
Vitesse:
Sram, Derailleur
Pédales:
VP, 335 Clips&Strap
Selecteur de vitesse Gauche:
Sram, Shift-brake lever, Rival ETAP AXS
Selecteur de vitesse Droit:
Sram, Shift-brake lever, Rival ETAP AXS

LXBTC

photos non contractuelles
