Lapierre OVERVOLT TR 6.8 2025

Cadre et plus
Taille:
S,M,L,XL
Max loadable weight (KG):
120 kg
Front Fork Type:
Suspension
Suspension Type:
Fully
Travel Front:
140 mm
Fourche:
Rockshox, Psylo Silver RC 15×110 29″ 140 mm
Cadre:
Suprême 5 alloy, Aluminium, Homme
Amortisseur:
Lapierre, Shock 185×50 mm Trunnion/15×8 mm
Cintre et Selle
Handlebar Diameter:
31.8 mm
Handlebar Material:
Aluminium
Handlebar Rise:
15,30
Handlebar Width:
760 mm
Seatpost Material:
Aluminium
Seatpost Travel (mm):
130 mm,150 mm,170 mm
Stem Length:
45 mm,50 mm
Poignée:
Lapierre, grips small diameter
Cintre:
Lapierre, Flat bar, Thirty One 6061DB, Rise: 15 mm, Ø: 31.8 mm
Jeu de direction:
Acros, Semi-integrated, Integrated ZS56/ZS56 Block Lock
Selle:
Selle Royal, Vivo
Tige de Selle:
JD, Dropperpost, YSP18, Ø: 31.6 mm, travel: 130 mm + Shimano lever
Potence:
Lapierre, Thirty One alloy, 0°, Ø: 31.8 mm, L: 45 mm
Composants E-bike
Battery Capacity:
800 Wh
Battery Location:
Downtube
Motor Torque [nm]:
85 Nm
Motor Location:
Center
Batterie:
Bosch, Powertube Horizontal 800Wh
Chargeur:
Bosch, Quick Charger, Charger 4A
Ecran:
Bosch, Kiox 300
Moteur:
Bosch, Performance line CX

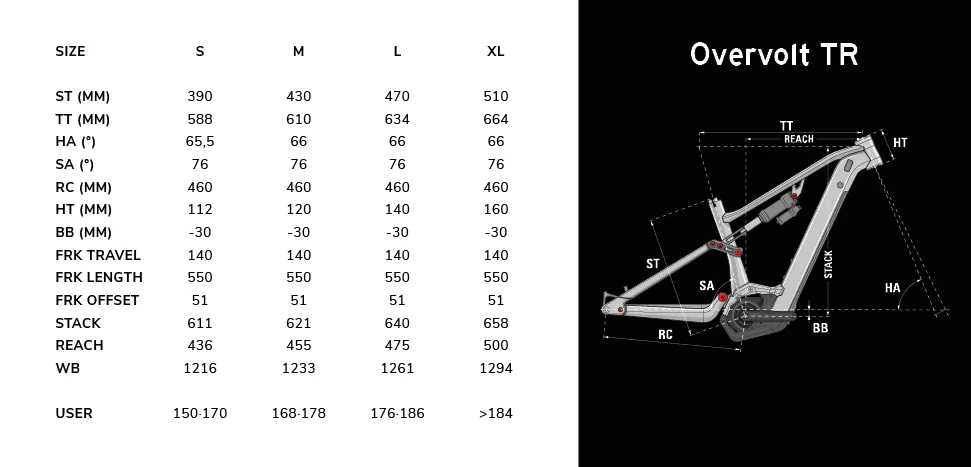

Géométrie
Bottom bracket drop [mm]:
25 mm
Chain stay length [mm]:
460 mm
Fork offset [mm]:
550 mm
Fork total length [mm]:
44 mm
Head tube angle:
65 degrees
Head tube length [mm]:
110 mm,120 mm,140 mm,160 mm
Reach [mm]:
430 mm,450 mm,470 mm,495 mm
Stack [mm]:
603 mm,615 mm,633 mm,651 mm
Seat tube angle:
76 degrees
Seat tube length [mm]:
390 mm,430 mm,460 mm,490 mm
Top tube length [mm]:
583 mm,606 mm,630 mm,660 mm
Wheelbase [mm]:
1211 mm,1230 mm,1257 mm,1291 mm
Roues et composants de roues
Moyeu Avant:
Shimano, TC500, boost 15×110, 32H Centerlock
Moyeu Arrière:
Shimano, TC500, boost 12×148, 32H Centerlock, HG driver
Rim Description:
Ryde, Disc30 32H, 30-622 Black Anodized
Jante Arrière:
Ryde, Disc30 32H, 30-622 Black Anodized
Pneu:
Continental, Kryptotal F Enduro Soft, 60-622
Pneu Arrière:
Continental, Xynotal R Enduro Soft
Taille de Roue:
29, 29
Système de freinage
Brake Rear Mount:
Post Mount
Frein Avant:
Shimano, Frein à disque hydraulique, M4100 4 pistons, 203 mm
Frein Arrière:
Shimano, Frein à disque hydraulique, M4100 2 pistons, 203 mm
Levier de frein:
Shimano, BL-M4100
Disques de frein:
Shimano, SM-RT30 203 mm, Centerlock
Transmission
Cassette Teeth:
11-50T
Crankset Teeth:
34T
Crankset Type:
single
Number Of Gears:
11
Cassette:
Shimano, Cassette, CUES CS-LG400-11, HG
Chaîne:
Shimano, Chaîne, CUES LG500 9/10/11s
Pédalier:
E Thirteen, Helix Core + E13 Helix Core steel chainring 55CL
Dérailleur Arrière:
Shimano, CUES U6000 10/11s Shadow+
Vitesse:
Shimano, Derailleur
Pédales:
XLC, by VP
Selecteur de vitesse Gauche:
Shimano, Triggershift, CUES U6000 11s
Selecteur de vitesse Droit:
Shimano, Triggershift, CUES SL-U6000-11R
