Cadre et plus
Taille:
S,M,L,XL
Max loadable weight (KG):
120 kg
Front Fork Type:
Suspension
Suspension Type:
Fully
Travel Front:
170 mm
Fourche:
FOX Factory, 38 Float Performance Elite GRIP X2 170 mm
Cadre:
Overvolt GLPIII Full carbon Ultimate, Carbone, Homme
Amortisseur:
FOX Factory, Float X Performance Elite 2pos 205x65mm Trunnion
Cintre et Selle
Handlebar Diameter:
35 mm
Handlebar Material:
Aluminium
Handlebar Rise:
30
Handlebar Width:
800 mm
Seatpost Material:
Aluminium
Seatpost Travel (mm):
125 mm,150 mm,170 mm
Stem Length:
35 mm,45 mm
Poignée:
Lapierre, Grips, small diameter
Cintre:
Lapierre, Flat bar, Thirty Five Alloy 6061DB, Rise: 30 mm, Ø: 35 mm
Jeu de direction:
Acros, Semi-integrated, Integrated ZS56/ZS56 Block Lock
Selle:
Selle Royal, Terra Ridon X5 145mm S-Alloy Mobius
Tige de Selle:
JD, Dropperpost, Dropper YSI05, Ø: 31.6 mm, travel: 125 mm
Potence:
Lapierre, Thirty Five Alloy 0°, Ø: 35 mm, L: 35 mm
Composants E-bike
Battery Capacity:
800 Wh
Battery Location:
Downtube
Motor Torque [nm]:
85 Nm
Motor Location:
Center
Batterie:
Bosch, Powerpack 800Wh
Chargeur:
Bosch, Quick Charger, Charger 4A
Ecran:
Bosch, KIOX 300 + Mini Remote
Moteur:
Bosch, Performance line CX
Géométrie
Bottom bracket drop [mm]:
10 mm
Chain stay length [mm]:
440 mm
Fork offset [mm]:
600 mm
Fork total length [mm]:
44 mm
Head tube angle:
64 degrees
Head tube length [mm]:
110 mm,120 mm,130 mm,140 mm
Reach [mm]:
435 mm,460 mm,480 mm,505 mm
Stack [mm]:
629 mm,638 mm,647 mm,656 mm
Seat tube angle:
77 degrees
Seat tube length [mm]:
390 mm,400 mm,430 mm,460 mm
Top tube length [mm]:
580 mm,607 mm,629 mm,656 mm
Wheelbase [mm]:
1225 mm,1255 mm,1279 mm,1308 mm
Roues et composants de roues
Wheelset Material:
Aluminium
Pneu:
Schwalbe, MAGIC MARY Evo, 67TPI, Super Trail, Addix Ultra soft, TR, 62-622
Pneu Arrière:
Schwalbe, BIG BETTY, 67TPI, Super Trail, Addix soft, TR
Paire de Roues:
Lapierre, eAM+ Alloy 32H, 622×33 J-bend Tubeless ready, 15×110 mm
Roue Arrière:
Lapierre, eAM+ Alloy 32H, 584×35 J-bend Tubeless ready, 12×148 mm
Taille de Roue:
29, 27.5
Système de freinage
Brake Rear Mount:
Post Mount
Frein Avant:
Shimano, Frein à disque hydraulique, Deore XT 4 pistons, 203 mm
Frein Arrière:
Shimano, Frein à disque hydraulique, Deore XT 4 pistons, 203 mm
Levier de frein:
Shimano, Deore XT BL-M800
Disques de frein:
Shimano, RT-CL800 203 mm, Centerlock
Transmission
Cassette Teeth:
10-51T
Crankset Teeth:
34T
Crankset Type:
single
Number Of Gears:
12
Cassette:
Shimano, Cassette, SLX CS-M7100-12, MICRO SPLINE
Chaîne:
Shimano, Chaîne, SLX CN-M7100 12s
Guide chaîne:
Lapierre, 1x
Pédalier:
E Thirteen, Helix Core + E13 Helix Race chainring 53 CL
Dérailleur Arrière:
Shimano, Deore XT 12s Shadow +
Vitesse:
Shimano, Derailleur
Pédales:
XLC, by VP
Selecteur de vitesse Gauche:
Shimano, Triggershift, SLX 12s Rapidfire
Selecteur de vitesse Droit:
Shimano, Triggershift, SLX SL-M7100-R Rapidfire

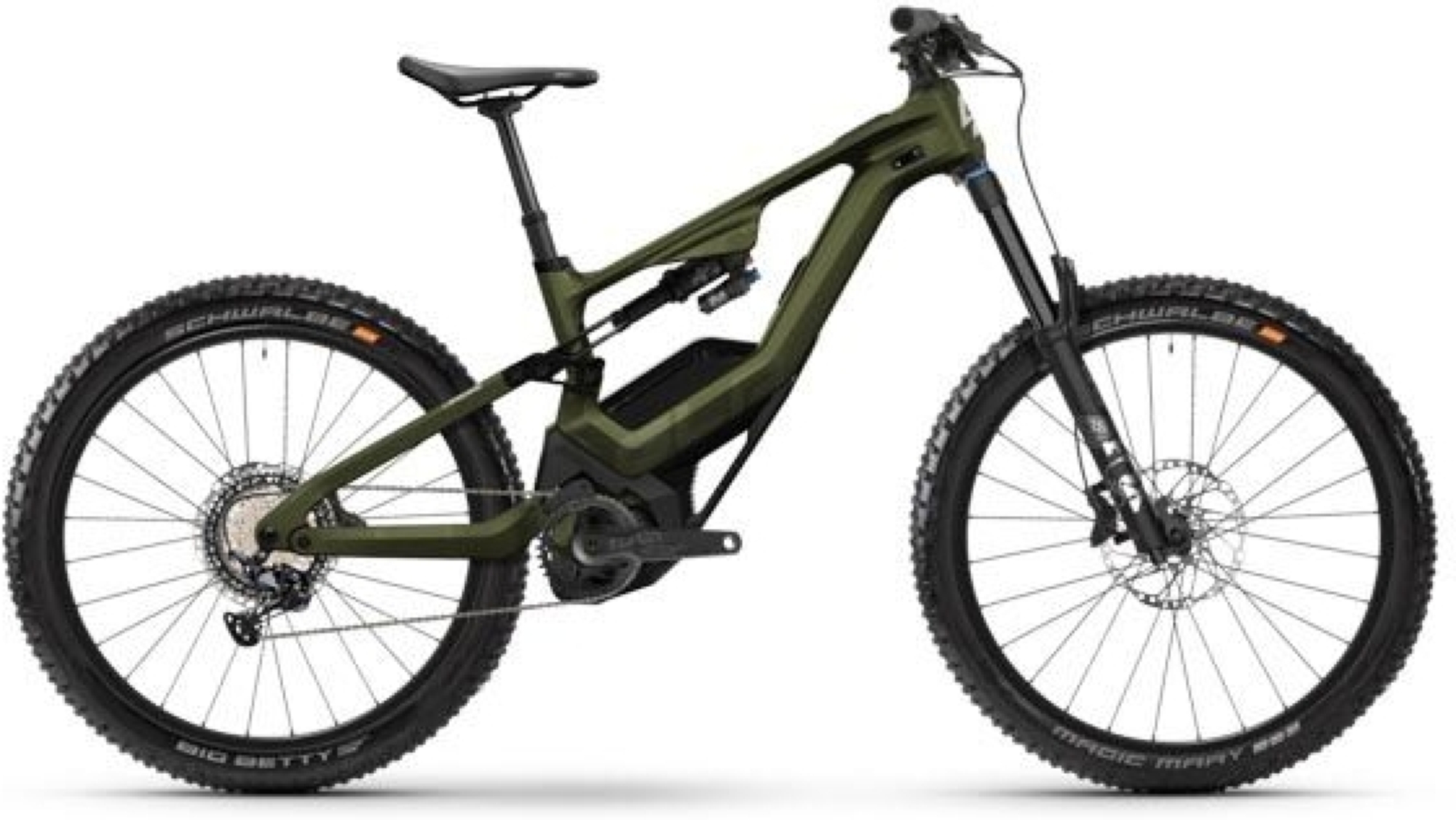

LGATA
